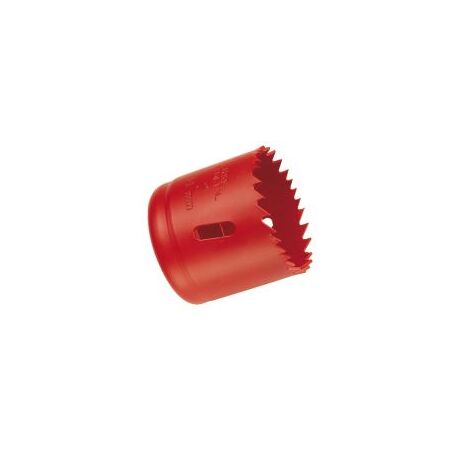

Hole Saw Bi-Metal High Speed 40mm Cabac
Cabac hole saw features 40mm cutting diameter, bi-metal high speed steel, and variable tooth pattern. Ideal for cutting thin metal, stainless and hard timbers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 40mm Bi-Metal Hole Saw, Metal-Cutting Hole Saw, High-Speed Steel Hole Saw
Technical Specifications
- Hole Diameter: 40 mm
- Cutting Depth: 35 mm
- Construction: High-speed steel bi-metal cutting edge welded to an alloy steel back
- Tooth Pattern: Variable tooth pattern
- Suitable Materials: Thin metal, stainless steel, cast iron, brass, aluminium, plastics, plywood, hard timber and nail-embedded wood
- Required Arbor: HSAB2 quick-release or HSAB3 standard arbor
- Arbor: Sold separately
- Recommended Speed - Mild Steel: 220 rpm
- Recommended Speed - Stainless Steel: 110 rpm
- Recommended Speed - Cast Iron: 145 rpm
- Recommended Speed - Brass: 290 rpm
- Recommended Speed - Aluminium: 325 rpm
- Dimensions (H x L x W): 35mm x 40mm x 40mm
- Weight: 0.12 kg
Key Features
- Bi-metal construction for heavy-duty cutting
- Variable tooth pattern for smoother cutting and improved cutting performance
- Suitable for metal, stainless steel and hard timber applications
- Can also cut pipe, plastics, plywood and nail-embedded wood
- Compatible with electric drills, pneumatic tools, drilling machines, lathes, boring machines and milling machines
- Supplied as the hole saw only; arbor and pilot drill are not included
Applications
- Electrical and communications installation work
- Plumbing and pipe penetrations
- HVAC and refrigeration installation work
- Cutting openings in thin sheet metal and stainless steel
- Cutting hard timber, plywood and nail-embedded wood
- Cutting plastic panels and similar materials
Environmental Benefits
- Steel components are recyclable at end of service life
- Bi-metal construction supports longer tool life than a basic single-material saw, reducing replacement frequency and material waste
- Durable construction allows the tool to be reused across multiple cutting applications
Warranty Information
Cabac terms provide warranty remedies including repair or replacement for eligible defective goods, subject to correct use and applicable Australian Consumer Law rights. No specific warranty duration for this hole saw was published. ([cabac.com.au](https://www.cabac.com.au/terms-and-conditions?utm_source=openai))
Available Now
Available through CABAC and authorised Australian electrical and trade-equipment distributors.
