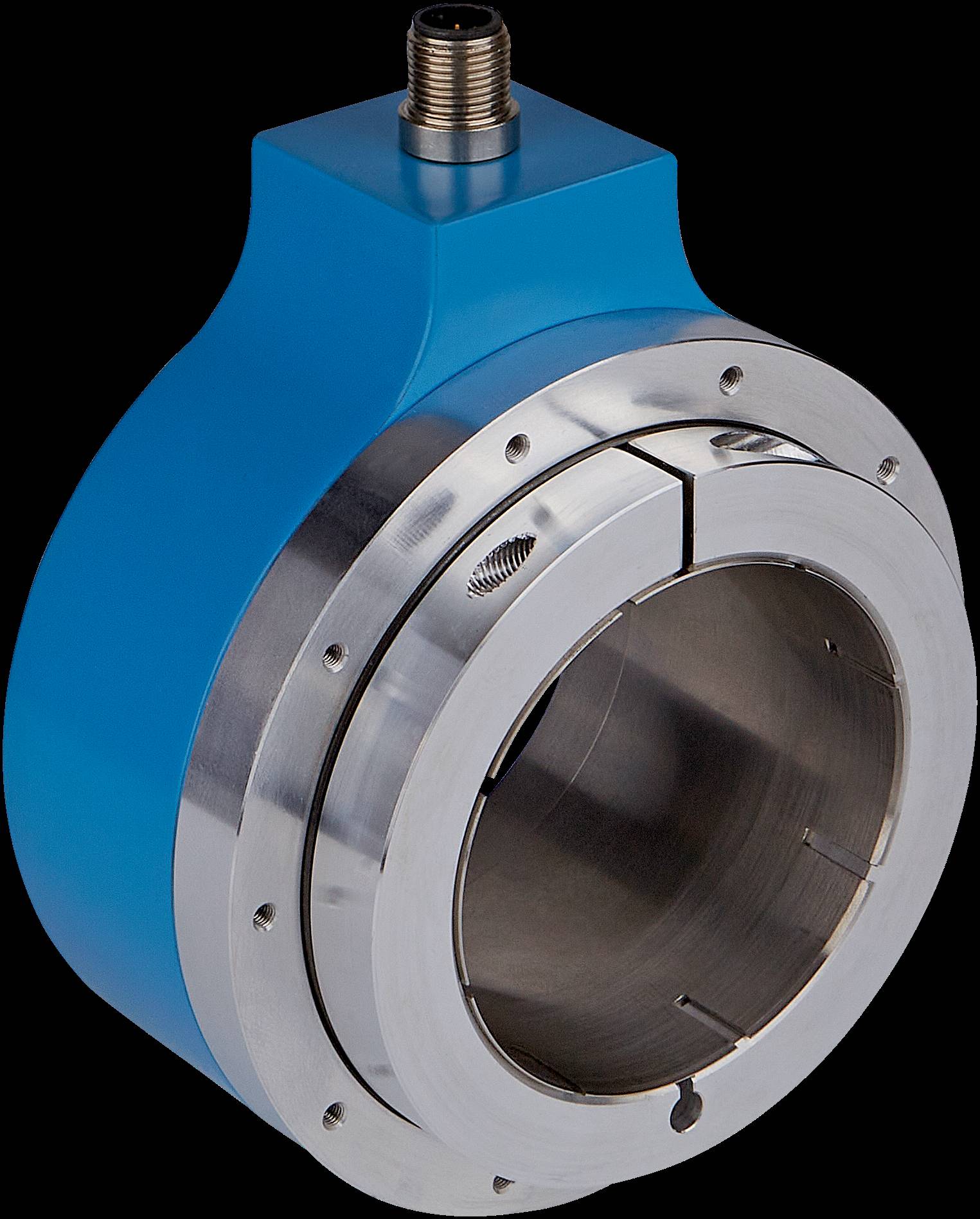

Hollow Shaft Incremental Encoder DGS80/90 | IP65 Rated | 2048 Pulses/Rev | TTL & HTL Interfaces | by SICK
The DGS80/90 Hollow Shaft Incremental Encoder is designed for industrial automation and motion control applications, featuring a robust IP65 rating for dust and water resistance. With up to 8192 pulses per revolution and multiple communication interfaces including TTL and HTL, this encoder ensures precise motion control. Ideal for asynchronous motor control, it offers easy installation with various connection types, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hollow Shaft Incremental Encoder DGS80/90 | IP65 Rated | 2048 Pulses/Rev | TTL & HTL Interfaces | by SICK
Brand: SICK
SKU: 1146042
Alternatively Known As: Hollow Shaft Incremental Encoder, Industrial Encoder, Motion Control Encoder
Technical Specifications
- Pulses per revolution: 2048 (up to 8192)
- Hollow shaft diameter: 30 mm or 42 mm (DGS80), 65 mm (DGS90)
- Enclosure rating: IP65
- Communication interfaces: TTL, HTL
- Connection types: M12 male connector (8-pin), M23, MS plug, cable with flying leads
- Construction size (flange): Ø 110 mm
- Supply voltage range: 5 V to 30 V
- Dimensions (H x L x W): 110mm x 110mm x 110mm
- Weight: 1.5 kg
Key Features
- Large hollow shaft diameters: up to 42 mm (DGS80) and 65 mm (DGS90)
- Pulses per revolution up to 8,192
- Enclosure rating IP65 for dust and water resistance
- Communication interfaces: TTL and HTL
- Multiple connection types including M12, M23, MS plug, and cable with flying leads
- Quick and easy installation with clamping ring and universal stator couplings
- Collets available as accessories for shaft size adjustment
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connections.
Applications
- Industrial automation systems
- Asynchronous motor control
- Motion control sensor applications requiring hollow shaft encoders
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 rated design reduces need for frequent replacements
- Energy-efficient operation supports sustainable industrial automation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80/90 Incremental Encoders are available now for immediate purchase. Ideal for industrial automation and motion control applications requiring robust and precise encoders.
