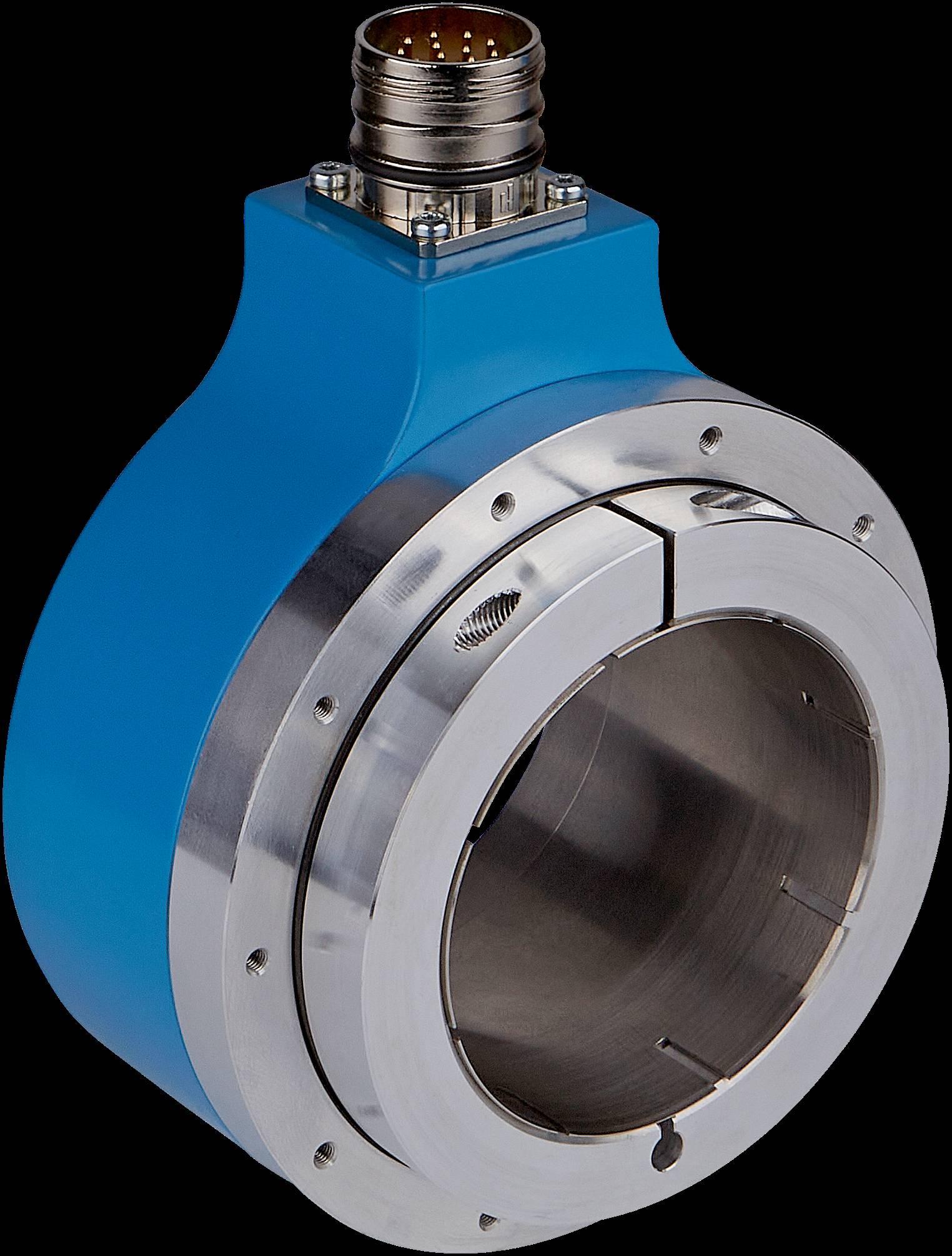

Hollow Shaft Incremental Encoder DGS80/90 | IP65 Rated | Up to 8192 Pulses | by SICK
The DGS80/90 Hollow Shaft Incremental Encoder is designed for industrial automation and motion control applications, featuring a robust IP65 rating for dust and water resistance. With large hollow shaft diameters of up to 65 mm and the ability to deliver up to 8,192 pulses per revolution, it ensures precise motion feedback. Ideal for asynchronous motor control, this encoder supports multiple communication interfaces and connection types for versatile integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hollow Shaft Incremental Encoder DGS80/90 | IP65 Rated | Up to 8192 Pulses | by SICK
Brand: SICK
SKU: 1146049
Alternatively Known As: Hollow Shaft Incremental Encoder, Industrial Encoder, Motion Control Encoder, SICK DGS Encoder
Technical Specifications
- Pulses per revolution: up to 8,192
- Hollow shaft diameter: 30 mm or 42 mm (DGS80), 65 mm (DGS90)
- Enclosure rating: IP65
- Communication interfaces: TTL, HTL
- Connection types: M12, M23, MS (Mil-Spec) plug and cable with flying leads
- Construction size (flange): Ø 110 mm
- Connection detail: Male connector, M23, 12-pin
- Supply voltage range: 5 V to 30 V
- Dimensions (H x L x W): 110mm x 60mm x 110mm
- Weight: 1.5 kg
Key Features
- Large hollow shaft diameters: up to 42 mm (DGS80) and 65 mm (DGS90)
- Pulses per revolution up to 8,192
- Enclosure rating IP65 for dust and water resistance
- Communication interfaces: TTL, HTL
- Multiple connection types including M12, M23, MS (Mil-Spec) plug and cable with flying leads
- Quick and easy installation with clamping ring and universal stator couplings
- Collets available as accessories for shaft size adjustment
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and safety.
Applications
- Industrial automation systems
- Asynchronous motor control
- Motion control sensor applications requiring hollow shaft encoders
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 rated design reduces need for frequent replacements
- Energy-efficient operation supports sustainable industrial automation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80/90 Incremental Encoders are available for immediate purchase, ideal for industrial automation and motion control applications requiring robust and precise encoders.
