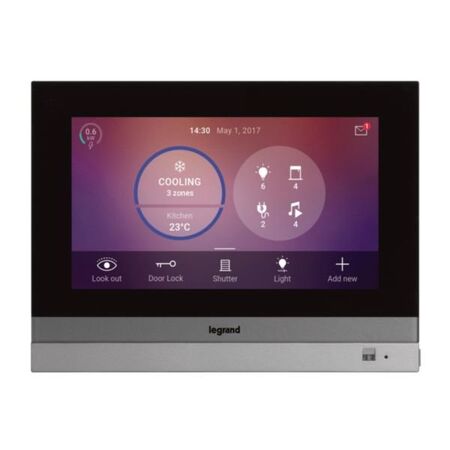

HOMETOUCH MyHOME_Up BUS/SCS 7 Inch Touch Screen | LED Display | WiFi Connectivity | by Legrand

BRAND: Legrand
SKU: 067259
$2,028.20 List price: $2,527.50
+ −
30 Days Return Delivery Options
HOMETOUCH MyHOME_Up BUS/SCS 7 inch touch screen is designed for seamless home automation control and video door entry management. With a vibrant LED display featuring 852x480 resolution and WiFi connectivity, it allows for easy control of lighting, temperature, and more. Ideal for both residential and commercial applications, this device is ready to use immediately after installation, ensuring a user-friendly experience.

Product Name/Title: HOMETOUCH MyHOME_Up BUS/SCS 7 Inch Touch Screen | LED Display | WiFi Connectivity | by Legrand

Brand: Legrand

SKU: 067259

Alternatively Known As: MyHOME_Up Touch Screen, Legrand Home Automation Touch Panel, Video Door Entry Touch Screen

Technical Specifications
  • Bus system Powernet: Yes
  • Bus system KNX, KNX-RF, LON, Radio frequency: No
  • Assembly arrangement: Control element
  • Mounting method: Flush-mounted
  • Display: LED with 852x480 resolution
  • Touch function: Yes
  • Additional interfaces: Ethernet
  • Material: Glass
  • Colour: Black (RAL 9005)
  • Degree of protection (IP): Other
  • Built-in depth: 7 mm
  • Operating temperature: 5-35 °C
  • Storage temperature: -10-70 °C
  • Hands free: Yes
  • Loudness setting: Yes
  • Addressable: Yes
  • Remote opening of gate / Electric door opener: Yes
  • Screen brightness and contrast setting: Yes
  • Contains Batteries: No
  • Connected object: Yes
  • Operating method: SCS, WiFi network
  • Application store: Google Play Store, Mac Apple Store
  • Programmable: Yes
  • Connectable by Internet box: Yes
  • Application name: Door Entry
  • Product use function: Control & command systems
  • Dimensions (H x L x W): 147mm x 25mm x 196mm
  • Weight: 1.2 kg
Key Features
  • Ready to use immediately after installation without configuration tools
  • Simple and customizable graphical user interface
  • Flush-mounted installation with minimal thickness of 7.2 mm
  • Functions as a connected video internal unit and home system control
  • Supports remote and local video door entry management via Door Entry app
  • Touch screen with LED display and resolution of 852x480
  • Hands-free communication and loudness adjustment
  • Connectivity via SCS bus and WiFi network
  • Programmable with software updates available for 3 years
  • Compatible with Google Play Store and Apple Mac Store applications
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure proper flush mounting and system integration.
Applications
  • Home automation control for lighting, shutters, temperature, and music
  • Video door entry system management
  • Residential and commercial building automation
Standards & Compliance
  • AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enables efficient control of home systems reducing energy consumption
  • Supports remote management to optimize resource use and reduce waste
Warranty Information

3 years warranty with software update support.

Available Now

Legrand HOMETOUCH MyHOME_Up BUS/SCS 7 Inches is available for immediate purchase, ideal for modern home automation and video door entry systems.

ST-00000724-EN (ST-00000724-EN.pdf, 1,660 Kb) [Download]

ST-00000724-FR (ST-00000724-FR.pdf, 1,662 Kb) [Download]

ex223001_0639 (ex223001_0639.pdf, 90 Kb) [Download]

ex223001_0638 (ex223001_0638.pdf, 82 Kb) [Download]

Readme MyHome_Suite (MyHome_Suite_README_v2.pdf, 551 Kb) [Download]
