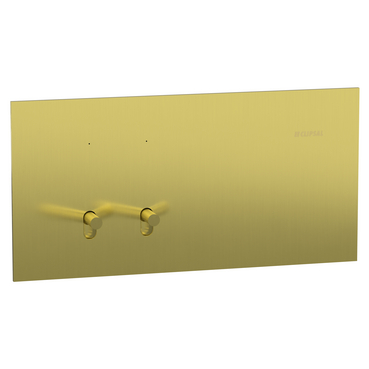

2 Gang Horizontal Switch 10AX | 20A Rated Current | Flush Mounting | by Clipsal
The 2 Gang Horizontal Switch 10AX is designed for efficient lighting control in residential and commercial settings. With a rated current of 20A and compatibility with LEDi lamps up to 250W, this toggle switch ensures reliable performance. Its flush mounting and screw terminal connections provide secure installation, making it ideal for electricians and DIY enthusiasts alike.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Switch Horiz 1G 10AX | 1 Gang Toggle Switch | 20A Rated Current | Flush Mounting | by Clipsal
Brand: Clipsal
SKU: CLI1041TA-BB
Alternatively Known As: Single Gang Horizontal Toggle Switch, 10AX Switch, Clipsal 1G Switch, CLI1041TA-BB Switch
Technical Specifications
- Device presentation: complete product
- Number of gangs: 1 gang
- Rated operational voltage: 230/240 V
- Rated current: 20 A/16 AX
- Control type: toggle switch
- Connections: screw terminals
- Device mounting: flush
- Number of rockers: 1
- Installation direction: horizontal
- Load type: LEDi lamp 0 to 250 W
- Clamping connection capacity: 4 x 1.5 to 3 x 2.5 mm²
- Screwdriver shape: Philips No 2 and square drive No 1 (SQ1)
- Wire stripping length: 10 mm
- Fixing mode: screw
- Fixing center: 84 mm
- Switch function: 1-pole 1/2-way
- Ambient air temperature for operation: 0 to 45 °C
- Relative humidity: 10 to 95 %
- Material: ceramic
- Dimensions (H x L x W): 74mm x 56mm x 148mm
- Weight: 0.1 kg
Key Features
- 1 gang horizontal toggle switch
- Rated operational voltage: 230/240 V
- Rated current: 20 A/16 AX
- Screw terminal connections with clamping capacity for 4 x 1.5 to 3 x 2.5 mm² wires
- Flush mounting with 84 mm fixing center
- Switch function: 1-pole 1/2-way
- Suitable for LEDi lamps 0 to 250 W
- Mercury free and RoHS compliant
- Ambient operating temperature: 0 to 45 °C
- Relative humidity tolerance: 10 to 95%
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Residential electrical installations
- Commercial electrical installations
- Lighting control for LEDi lamps and general lighting loads
Standards & Compliance
- Complies with AS/NZS 60669 for switches and control devices
Environmental Benefits
- Mercury free design reduces environmental hazards
- Compliant with RoHS and EU environmental directives
- Contains materials compliant with environmental disclosure standards
Warranty Information
Standard manufacturer warranty applies. Please refer to Clipsal warranty terms for details.
Available Now
The Clipsal Switch Horiz 1G 10AX CLI1041TA-BB is available for immediate purchase, ideal for residential and commercial lighting control applications.
