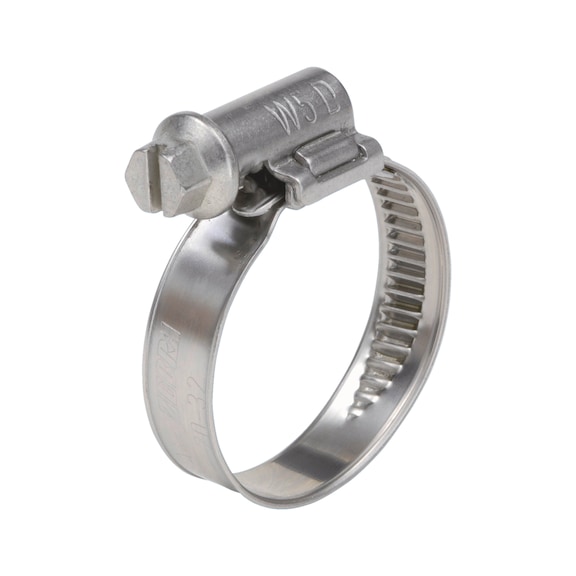

Hose Clamp A4 with Asymmetrical Lock | Stainless Steel | 100-120mm Grip Range | 12mm Band Width | @Pack of 10 | by Wurth
The Hose Clamp A4 with asymmetrical lock is crafted entirely from durable stainless steel, ensuring corrosion resistance and longevity. With a grip range of 100-120mm and a 12mm band width, it's perfect for automotive, industrial, and plumbing applications. Designed to prevent clamp head tilting during tightening, this clamp guarantees a secure hose connection, making it ideal for use in corrosive environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hose Clamp A4 with Asymmetrical Lock | Stainless Steel | 100-120mm Grip Range | 12mm Band Width | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 538100120
Alternatively Known As: Stainless Steel Hose Clamp, A4 Hose Clip, DIN3017 Hose Clamp, Asymmetrical Lock Hose Clamp, Stainless Steel Hose Lock
Technical Specifications
- Material of clamp band: Stainless steel A4
- Surface of the clamp band: Plain
- Material of screw: Stainless steel A4
- Surface of the screw: Plain
- Material of housing: Stainless steel A4
- Surface of the housing: Plain
- Width of band: 12 mm
- Min./max. grip range: 100-120 mm
- Drive type: Slot
- Width across flats (SW): 7 mm
- Tightening torque: 5 Nm
- Standards: DIN 3017
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 120mm x 12mm
- Weight: 0.05 kg
Key Features
- Asymmetrical housing for uniform force distribution
- Prevents clamp head tilting during tightening
- Smooth, embossed band interior with rounded edges to avoid hose damage
- Corrosion resistant full stainless steel A4 construction
- Slot drive type with 7 mm width across flats
- Tightening torque up to 5 Nm
Professional Installation Requirements
- Installation by a qualified technician or professional is recommended to ensure proper tightening torque and secure hose connection.
Applications
- Automotive hose connections
- Industrial fluid and air hose securing
- Plumbing and irrigation systems
- General purpose hose clamping in corrosive environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Hose Clamp A4 with asymmetrical lock is available for immediate purchase, ideal for automotive, industrial, and plumbing hose securing applications.
