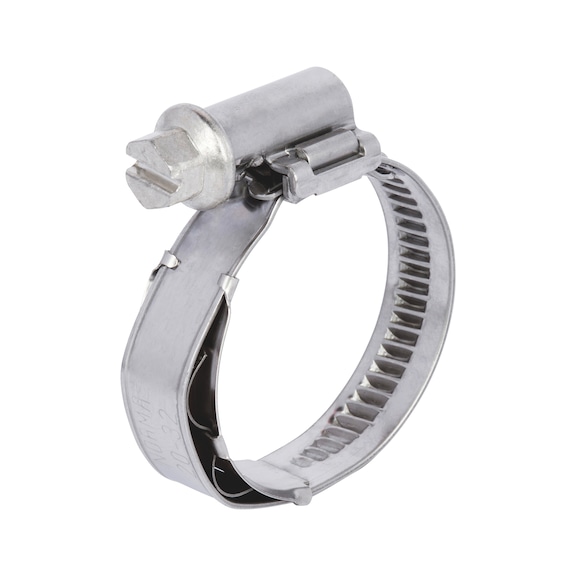

Hose Clamp with Corrugated Spring | Self-Tightening Action | High Pressure & Temperature Resistance | by Wurth
Hose clamp with corrugated spring designed for high pressure and temperature fluctuations, ideal for automotive, industrial, and plumbing applications. This self-tightening clamp ensures increased water tightness and features an asymmetrical housing for even force distribution, making it a reliable choice for securing hoses.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hose Clamp with Corrugated Spring | Self-Tightening Action | High Pressure & Temperature Resistance | by Wurth
Brand: Wurth
SKU: 549450070
Alternatively Known As: Spring Hose Clamp, Corrugated Spring Clamp, Self-tightening Hose Clamp, High Pressure Hose Clamp
Technical Specifications
- Material of clamp band: Ferritic steel F1
- Material of housing: Ferritic steel F1
- Material of screw: Ferritic steel F1
- Material of corrugated spring: Stainless steel A2
- Width of band: 9 mm
- Min./max. grip range: 50-70 mm
- Drive type: Slot
- Width across flats: 7 mm
- Tightening torque: 3 Nm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 15mm x 60mm x 9mm
- Weight: 0.05 kg
Key Features
- Corrugated spring on strap interior for self-tightening action
- Increased water tightness even under high pressure and temperature fluctuations
- Asymmetrical housing ensures even distribution of force
- Clamp head does not tilt away during tightening
- Smooth, embossed inside of band with rounded edges prevents injuries and hose damage
Professional Installation Requirements
- Installation by a qualified technician or professional is recommended to ensure proper tightening and safety.
Applications
- Suitable for high pressure and temperature fluctuation applications
- Ideal for securing hoses in automotive, industrial, and plumbing systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- RoHS-compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Hose Clamp with Corrugated Spring 10 PCS is available for immediate purchase, ideal for industrial, automotive, and plumbing hose securing applications.
