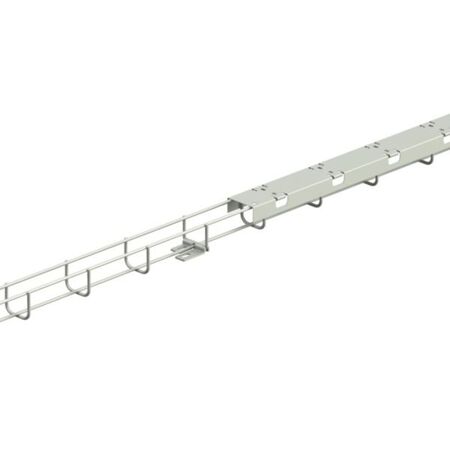

Hot Dip Galvanised Steel Wire Cable Tray Mini U-Shaped Profile Corrosion Resistant Cablofil
The Hot Dip Galvanised Steel Wire Cable Tray Mini is designed for efficient cable management in industrial and commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Profile shape: U-shape
- Width: 35 mm
- Height: 35 mm
- Length: 3000 mm
- Usable cross section: 1225 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Colour: Zinc
- Type of connection: Screwed
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Integrated partition: None
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 35mm x 3000mm x 35mm
- Weight: 3.5 kg
Key Features
- Hot-dip galvanised steel construction for enhanced corrosion resistance
- U-shaped profile with straight edges for easy cable placement
- Natural ventilation design improves cable efficiency
- Screwed type of connection for secure assembly
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure fixing and compliance with electrical and building standards.
Applications
- Cable management in industrial and commercial electrical installations
- Support and routing of electrical cables in buildings and infrastructure
- Suitable for environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanising extends product lifespan reducing waste and replacement frequency
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; typically 1-3 years depending on purchase terms.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Mini 35mm x 35mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
