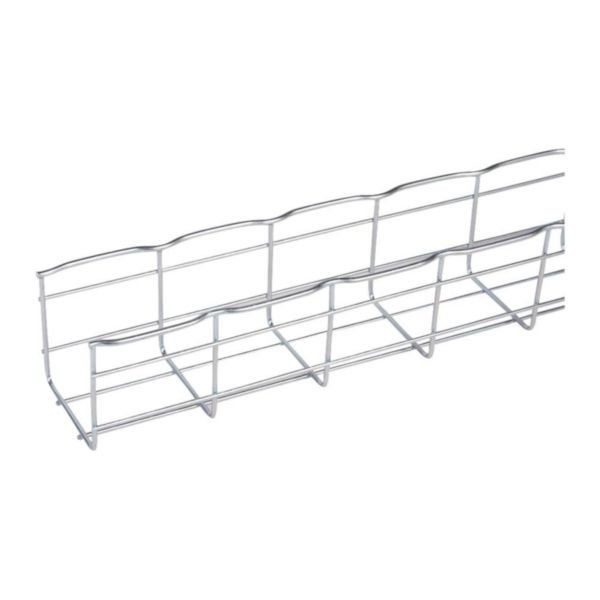

Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | 100mm x 105mm | Corrosion Resistant | @Each of 1 | by Cablofil
The Hot Dip Galvanised Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. With a robust U-shape profile and superior corrosion resistance, it supports and routes electrical cables effectively. Ideal for both indoor and outdoor use, this tray ensures natural ventilation for greater cable efficiency, making it a reliable choice for data centers and factories.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | 100mm x 105mm | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000893
Alternatively Known As: Steel Wire Cable Tray, Galvanised Cable Tray, Hot Dip Galvanised Cable Tray, Wire Mesh Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 100 mm
- Height: 105 mm
- Length: 3000 mm
- Usable cross section: 10500 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Colour: Zinc
- Weight: 1.3935 kg/m
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- No integrated partition
- Model without connector
- Not suitable for circuit integrity
- Dimensions (H x L x W): 105mm x 3000mm x 100mm
- Weight: 4.18 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Hot-dip galvanised steel construction for superior corrosion resistance
- U-shaped profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified electricians or cable management specialists is recommended to ensure compliance with electrical standards and safety.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for indoor and outdoor use where corrosion resistance is required
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Hot-dip galvanising extends product life reducing replacement frequency and waste
- Steel is recyclable, supporting circular economy and reducing environmental impact
Warranty Information
Standard manufacturer warranty applies; typically 1-3 years depending on purchase terms.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray 100mm x 105mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
