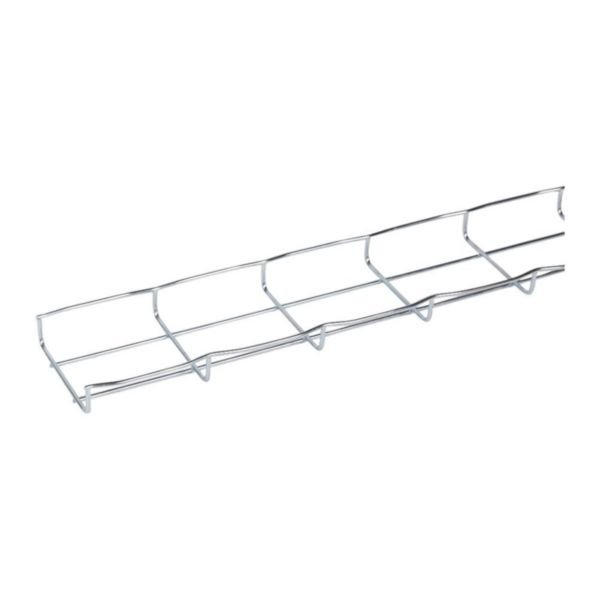

Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | 100mm Width | Enhanced Corrosion Resistance | @Each of 1 | by Cablofil
The Hot Dip Galvanised Steel Wire Cable Tray is designed for efficient cable management in industrial and commercial settings. With a robust U-shape profile and hot-dip galvanised steel construction, it offers enhanced corrosion resistance and natural ventilation for optimal cable performance. Ideal for supporting and routing electrical cables, this tray ensures safety and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | 100mm Width | Enhanced Corrosion Resistance | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000023
Alternatively Known As: Steel Wire Cable Tray, Galvanised Cable Tray, Hot Dip Galvanised Cable Tray, U-Shape Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 100 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 2643 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: 0.557 kg/m
- Dimensions (H x L x W): 30mm x 3000mm x 100mm
- Weight: 1.67 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Hot-dip galvanised steel construction for enhanced corrosion resistance
- U-shape profile for robust cable support
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems to ensure safety and compliance with electrical standards.
Applications
- Cable management in industrial and commercial electrical installations
- Support and routing of electrical cables in buildings and infrastructure
- Suitable for environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray 100mm x 30mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
