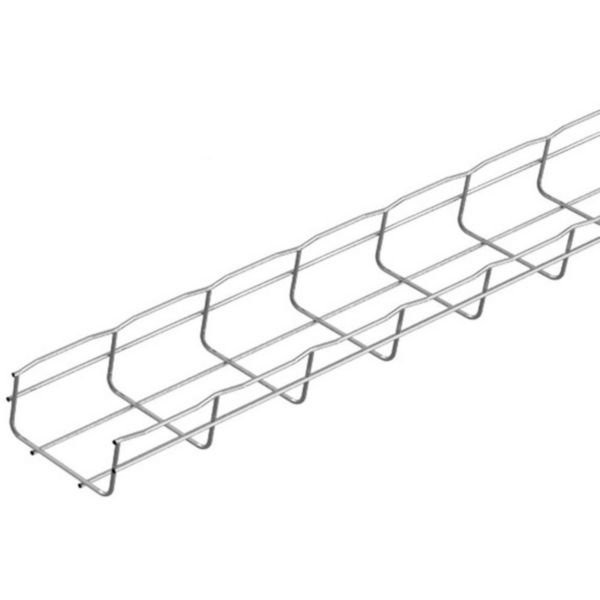

Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | 100mm Width | Corrosion Resistant | @EA of 1 | by Cablofil
The Hot Dip Galvanised Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. With a robust U-shape profile and hot-dip galvanised surface for enhanced corrosion resistance, it ensures safe routing of electrical cables. Ideal for data centers and factories, this tray supports circuit integrity applications while providing natural ventilation for greater cable efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | 100mm Width | Corrosion Resistant | @EA of 1 | by Cablofil
Brand: Cablofil
SKU: CM000073
Alternatively Known As: Steel Wire Cable Tray, Galvanised Cable Tray, Wire Mesh Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 100 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 5143 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: 0.8088 kg/m
- Dimensions (H x L x W): 54mm x 3000mm x 100mm
- Weight: 2.43 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Hot-dip galvanised surface protection for enhanced corrosion resistance
- Suitable for circuit integrity applications
- U-shape profile for structural strength
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper support, secure fixing, and compliance with electrical and building codes.
Applications
- Cable management in commercial and industrial electrical installations
- Supporting and routing electrical cables in data centers, factories, and buildings
- Suitable for environments requiring corrosion resistance and cable protection
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray 100mm x 54mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
