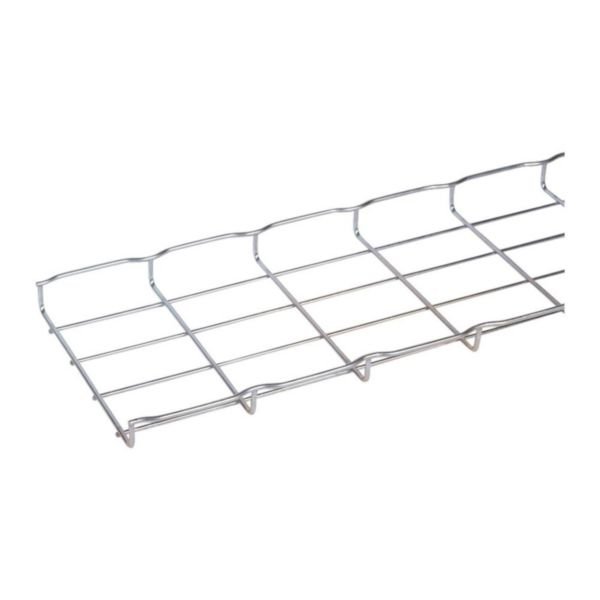

Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | 200mm Width | Corrosion Resistant | @EA of 1 | by Cablofil
The Hot Dip Galvanised Steel Wire Cable Tray is designed for efficient cable management in industrial and commercial settings. With a robust U-shape profile and hot-dip galvanised steel construction, it offers enhanced corrosion resistance and natural ventilation for optimal cable performance. Ideal for data centers and manufacturing plants, this tray supports a wide range of electrical installations while ensuring safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | 200mm Width | Corrosion Resistant | @EA of 1 | by Cablofil
Brand: Cablofil
SKU: CM000043
Alternatively Known As: Steel Wire Cable Tray, Galvanised Cable Tray, Hot Dip Galvanised Cable Tray, U-Shape Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 200 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 5293 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Colour: Zinc
- Weight: 0.984 kg/m
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Model: Without connector
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 30mm x 3000mm x 200mm
- Weight: 2.95 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Hot-dip galvanised steel construction for enhanced corrosion resistance
- U-shape profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems and structural support requirements to ensure safety and compliance.
Applications
- Cable management in industrial, commercial, and residential electrical installations
- Supports and routes electrical cables in data centers, manufacturing plants, and infrastructure projects
- Suitable for environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray 200mm x 30mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
