Trade Discount 20%

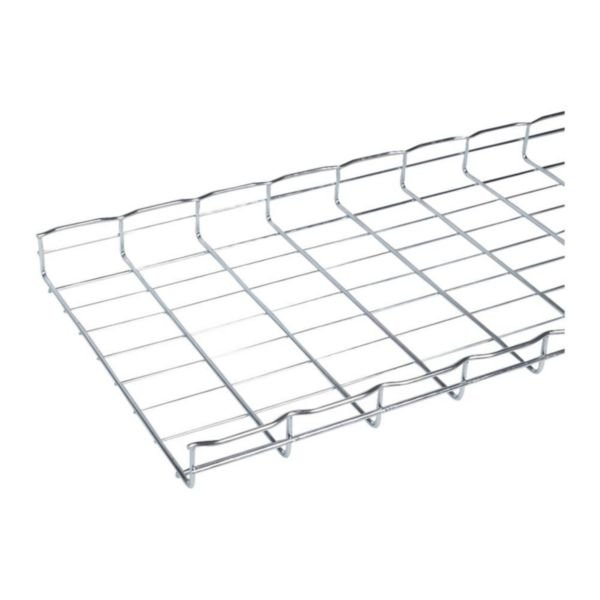

Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Design | 400mm Width | Corrosion Resistant | @Each of 1 | by Cablofil
The Hot Dip Galvanised Steel Wire Cable Tray is designed for efficient cable management in industrial and commercial settings. With a U-shape profile and a width of 400mm, it features a unique T-welded safety edge for added protection and natural ventilation for improved cable efficiency. Built from durable steel and hot-dip galvanised for enhanced corrosion resistance, this tray is perfect for environments requiring reliable cable support and routing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Design | 400mm Width | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000203
Alternatively Known As: Steel Wire Cable Tray, Galvanised Cable Tray, Wire Mesh Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 400 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 20413 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: Approximately 3.17 kg per meter
- Dimensions (H x L x W): 54mm x 3000mm x 400mm
- Weight: 9.52 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Hot-dip galvanised surface protection for enhanced corrosion resistance
- Suitable for circuit integrity applications
- Steel construction for strength and durability
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with safety standards and optimal cable management.
Applications
- Cable management in industrial and commercial electrical installations
- Supporting and routing electrical cables in data centers, factories, and buildings
- Suitable for environments requiring corrosion resistance and cable protection
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray 400mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
