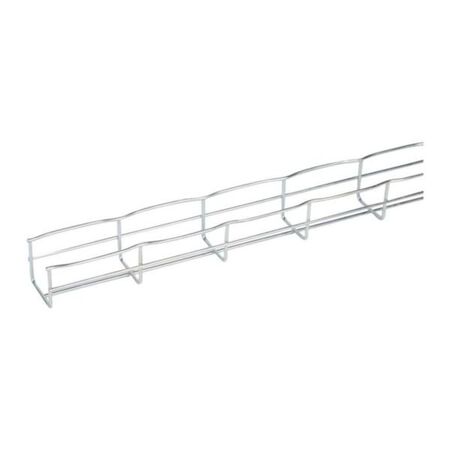

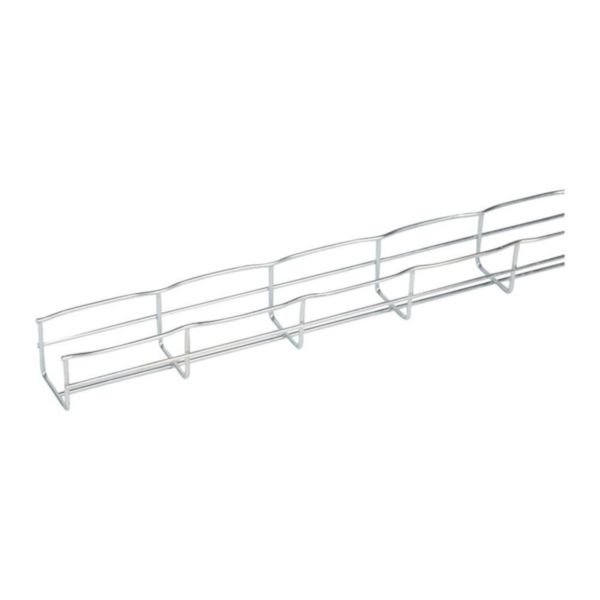

Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | 50mm Width & 54mm Height | @Each of 1 | by Cablofil
The Hot Dip Galvanised Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. With a robust U-shape profile, 50mm width, and 54mm height, it ensures natural ventilation and protects cables with its unique T-welded safety edge. Ideal for environments requiring corrosion resistance, this tray supports electrical installations while complying with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | 50mm Width & 54mm Height | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000063
Alternatively Known As: Steel Wire Cable Tray, Galvanised Cable Tray, Hot Dip Galvanised Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 50 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 2558 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Colour: Zinc
- Weight: 0.656 kg/m
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Suitable for circuit integrity: Yes
- Model: Without connector
- Dimensions (H x L x W): 54mm x 3000mm x 50mm
- Weight: 1.97 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation for greater cable efficiency
- Hot-dip galvanised steel construction for corrosion resistance
- U-shape profile with 50mm width and 54mm height
- Suitable for circuit integrity applications
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems and electrical safety standards to ensure compliance and safety.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for environments requiring corrosion resistance and cable protection
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray 50mm x 54mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
