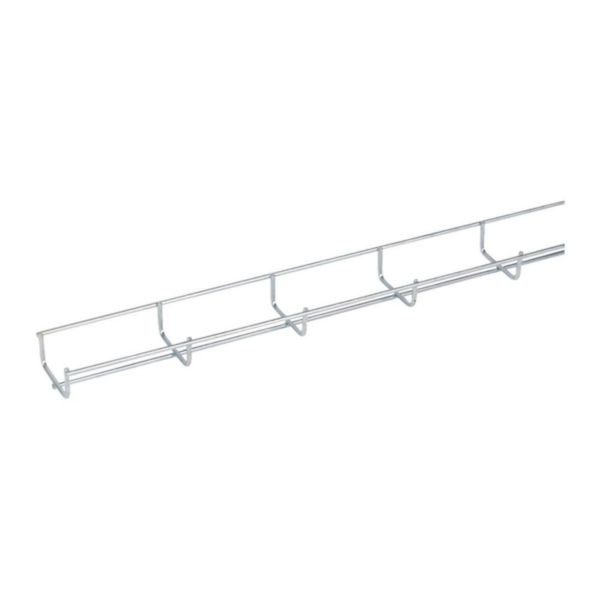

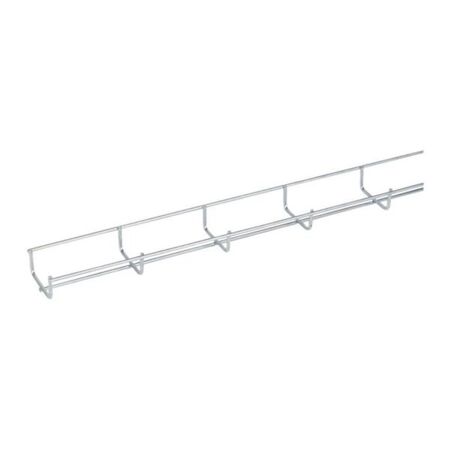

Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | Natural Ventilation Design | @Each of 1 | by Cablofil
The Hot Dip Galvanised Steel Wire Cable Tray is designed for effective cable management in industrial and commercial settings. With a robust U-shaped profile and superior corrosion resistance, it supports efficient cable routing while preventing heat buildup. Ideal for data centers and factories, this tray ensures compliance with electrical standards and enhances cable longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | Natural Ventilation Design | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000013
Alternatively Known As: Galvanised Steel Cable Tray, Wire Mesh Cable Tray, Hot Dip Galvanised Cable Tray, Steel Wire Cable Tray 50x30
Technical Specifications
- Profile shape: U-shape
- Width: 50 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 1308 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Colour: Zinc
- Weight: 0.41 kg/m
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Model: Without connector
- No integrated partition
- Not suitable for circuit integrity
- Dimensions (H x L x W): 30mm x 3000mm x 50mm
- Weight: 1.23 kg
Key Features
- Hot-dip galvanised steel construction for superior corrosion resistance
- U-shaped profile providing structural strength and cable support
- Natural ventilation design enhances cable efficiency by preventing heat buildup
- Straight edge design for easy cable laying and installation
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified electrical professionals to ensure compliance with electrical standards and secure cable management.
Applications
- Cable management in industrial and commercial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Hot-dip galvanised coating extends product lifespan reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
- Natural ventilation reduces energy loss by maintaining cable temperature
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray 50mm x 30mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
