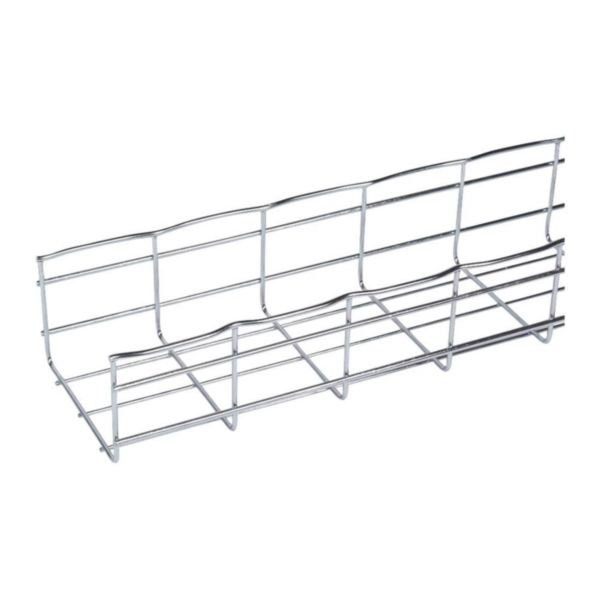

Hot Dip Galvanised Steel Wire Cable Tray | U-Shaped Profile | 150mm x 105mm | Corrosion Resistant | @Each of 1 | by Cablofil
The Hot Dip Galvanised Steel Wire Cable Tray is designed for efficient cable management in industrial and commercial settings. With a robust U-shaped profile and hot-dip galvanised steel construction, it offers enhanced corrosion resistance and natural ventilation for optimal cable performance. Ideal for data centers and manufacturing plants, this tray supports a wide range of electrical installations while ensuring safety and compliance with standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hot Dip Galvanised Steel Wire Cable Tray | U-Shaped Profile | 150mm x 105mm | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000903
Alternatively Known As: Galvanised Steel Wire Cable Tray, Hot Dip Galvanised Cable Tray, Steel Wire Mesh Cable Tray, Cable Tray 150x105mm, Wire Mesh Tray 3m Length
Technical Specifications
- Profile shape: U-shape
- Width: 150 mm
- Height: 105 mm
- Length: 3000 mm
- Usable cross section: 15750 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Colour: Zinc
- Weight: 1.9567 kg/m
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Model: Without connector
- Integrated partition: None
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 105mm x 3000mm x 150mm
- Weight: 5.87 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Hot-dip galvanised steel construction for enhanced corrosion resistance
- U-shaped profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems and structural support requirements to ensure safety and compliance with standards.
Applications
- Cable management in industrial, commercial, and residential electrical installations
- Support and routing of electrical cables in data centers, manufacturing plants, and infrastructure projects
- Suitable for environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanising extends product life, reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
- Natural ventilation design reduces overheating, improving energy efficiency of cable systems
Warranty Information
Standard manufacturer warranty applies; typically 1-3 years depending on purchase terms.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray 150mm x 105mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
