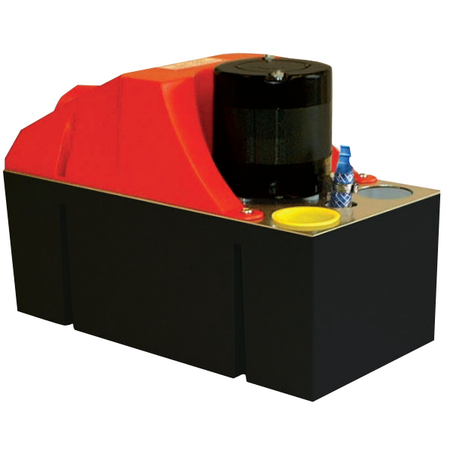

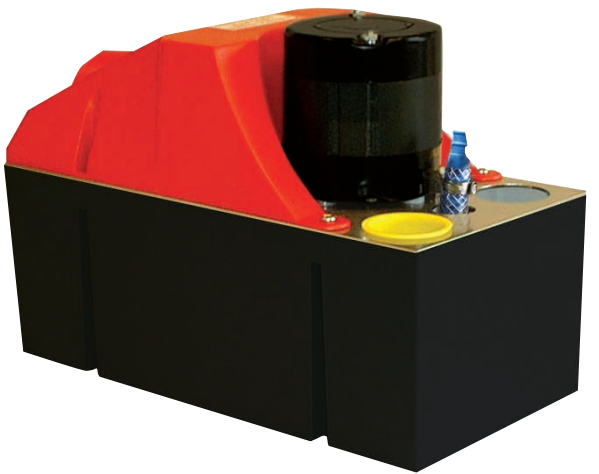

Hot Water Economy Condensate Pump | 900 L/h Flow Rate | 100°C Max Temperature | Thermal Protection | by Aspen Pumps
The Hot Water Economy Condensate Pump is designed for high-performance condensate removal in HVAC and refrigeration systems. With a maximum flow rate of 900 L/h and the ability to handle water temperatures up to 100°C, this pump is perfect for applications like humidifiers and boilers. Its durable design and thermal protection ensure reliable operation, making it an essential tool for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hot Water Economy Condensate Pump | 900 L/h Flow Rate | 100°C Max Temperature | Thermal Protection | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP2092
Alternatively Known As: Hot Water Condensate Pump, High Temperature Condensate Pump, Aspen Hot Water Pump
Technical Specifications
- Max flow rate: 900 L/h at 0 head
- Max recommended head: 6 m
- Tank capacity: 4 L
- Noise level: 60 dB(A) at 1 m
- Power supply: 230 VAC, 1.5A, 50Hz
- Rated for non-continuous operation
- Maximum water temperature: 100°C / 212°F
- Inlet size: 40 mm (2 inlets)
- Outlet size: 10 mm
- IP Protection: IP20
- Safety switch: 3.0A normally closed
- Thermal protection: Yes
- Material: Heat resistant cycoloy
- Dimensions (H x L x W): 120mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- High performance pump
- Handles water temperatures up to 100°C
- Two inlets for versatile installation
- Thermal protection included
- Safety switch 3.0A normally closed
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure safety and compliance with electrical standards.
Applications
- Humidifiers
- Boilers
- Refrigeration systems
- Air Handling Units (AHUs)
Standards & Compliance
- AS/NZS 60335 – Safety of household and similar electrical appliances
Environmental Benefits
- Efficient water removal reduces energy consumption in HVAC systems
- Durable design minimizes waste and replacement frequency
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Pumps Hot Water Economy Condensate Removal Pump is available for immediate purchase, ideal for HVAC and refrigeration applications requiring high temperature condensate removal.
