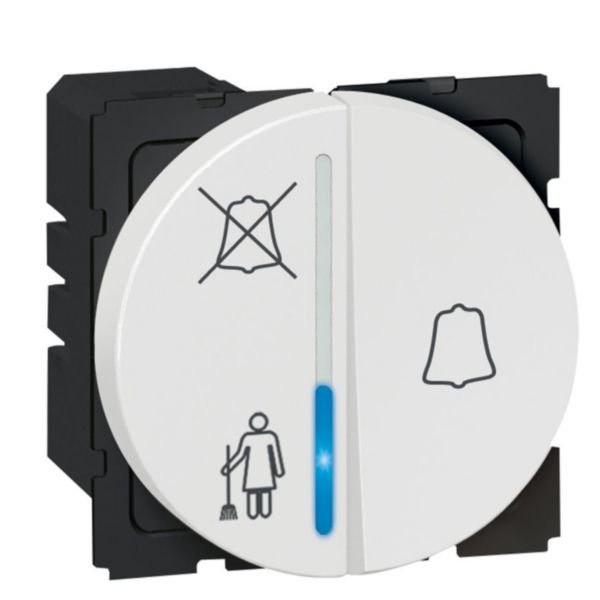

Hotel Bedroom Call Indicator Lamp & Bell Push | LED Indicator | IP40 Rated | @EA of 1 | by Legrand
The Hotel Bedroom Call Indicator Lamp and Bell Push is designed for seamless guest communication in hotel rooms. Featuring a clear LED indicator and two settings—'Do Not Disturb' and 'Please Clean the Room'—this modular device is perfect for the hospitality industry. Built with halogen-free thermoplastic and IP40 protection, it ensures durability and low energy consumption, making it an ideal choice for modern hotel applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal voltage: 250 V AC
- Rated current: 6 A
- Number of contacts (normally open): 1
- Number of modules: 1
- Mounting method: Snap-on module frame
- Material: Halogen free thermoplastic
- Degree of protection: IP40
- Impact resistance: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Connection type: Screwed terminal
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42mm x 45mm
- Weight: 0.1 kg
Key Features
- Two settings: Do not disturb and Please clean the room
- Indicator lamp and bell push in one device
- Equipped with LED for clear indication
- Modular device compatible with Arteor system
- Snap-on mounting with screwed terminal connection
- Halogen free thermoplastic material with glossy white finish
- IP40 rated for protection against solid objects
- IK04 impact resistance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Hotel rooms for guest communication
- Hospitality industry for room status indication
- Corridor installation for call display
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- LED indicator for low energy consumption
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor Hotel Bedroom Call Indicator Lamp and Bell Push is available for immediate purchase, ideal for hotel and hospitality applications.
