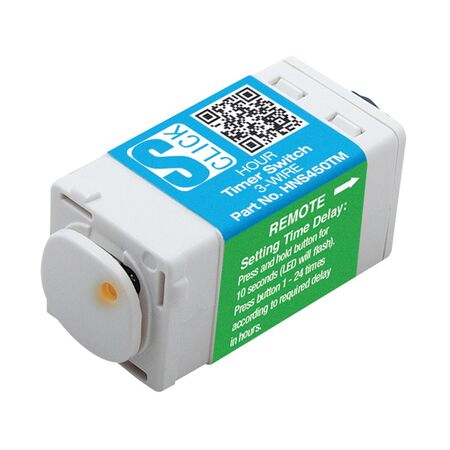

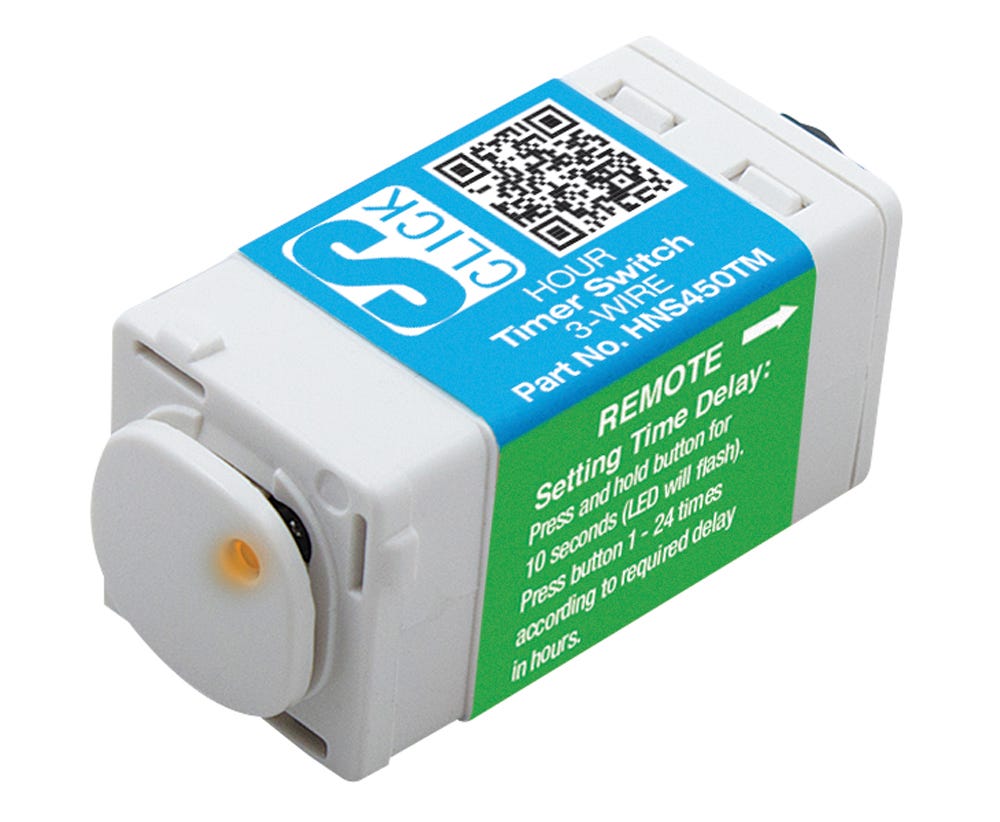

Hour Mech Timer 3-Wire 240V 5A | Programmable Time Switch | Boost Mode & LED Indicator | @EA of 1 | by Cabac
The Hour Mech Timer 3-Wire 240V 5A is a versatile programmable time switch designed for efficient control of electrical devices. With a time delay feature ranging from 1 to 24 hours and a boost mode that doubles the run time, it's perfect for garden lighting, water features, and timed operation of fans and motors. The amber LED indicator provides status updates, making it ideal for both residential and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hour Mech Timer 3-Wire 240V 5A | Programmable Time Switch | Boost Mode & LED Indicator | @EA of 1 | by Cabac
Brand: Cabac
SKU: HNS450TM
Alternatively Known As: Mechanical Hour Timer Switch, Programmable Time Switch, 3-Wire Timer, 24 Hour Timer Switch
Technical Specifications
- Voltage: 240V AC
- Current Rating: 5A

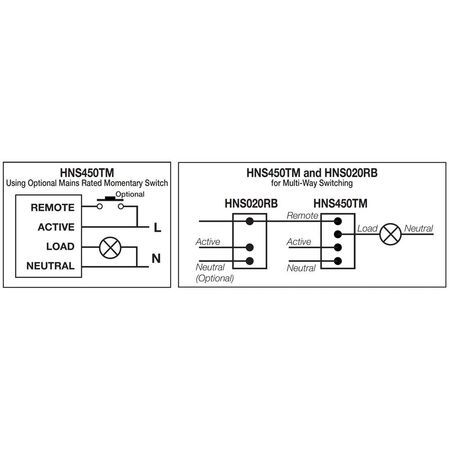

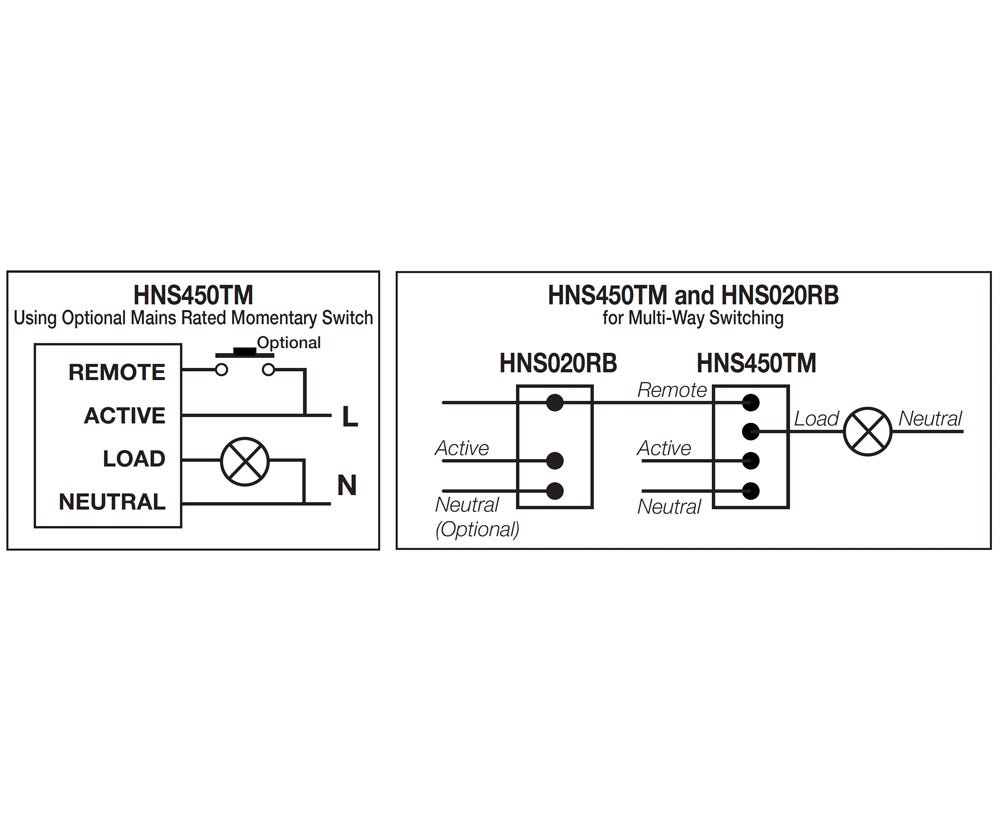

- Wiring: 3-wire connection
- Time Delay: 1 to 24 hours in hour increments
- Boost Mode: Doubles programmed run time up to 24 hours
- LED Indicator: Amber status and expiry warning
- Memory: Retains settings after power loss
- Load Types: Suitable for fans, motors, pumps, contactors, inductive loads
- Dimensions (H x L x W): 90mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- 2-in-1 power switch with automatic turn off after programmable time
- Time delay programmable from 1 to 24 hours in hour increments
- Settings retained after power loss
- Amber LED status indicator with expiry warning
- Boost Mode doubles the programmed run time up to 24 hours
- Can control fans, motors, pumps, contactors, and inductive loads
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Garden lighting control
- Water features automation
- Fans and motors timed operation
- Pumps and contactors control
- Lighting systems requiring extended run time
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps reduce energy consumption by automatically turning off devices after set time
- Prevents unnecessary power usage, contributing to lower carbon footprint
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Cabac Hour Mech Timer 3-Wire 240V 5A is available now for immediate purchase. Ideal for residential and commercial applications requiring timed control of electrical devices.
