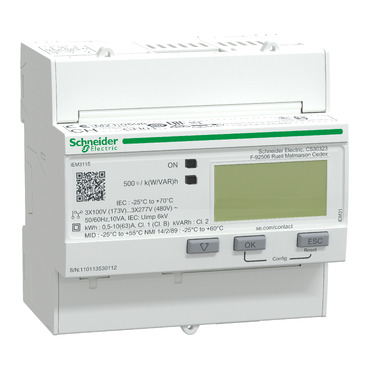

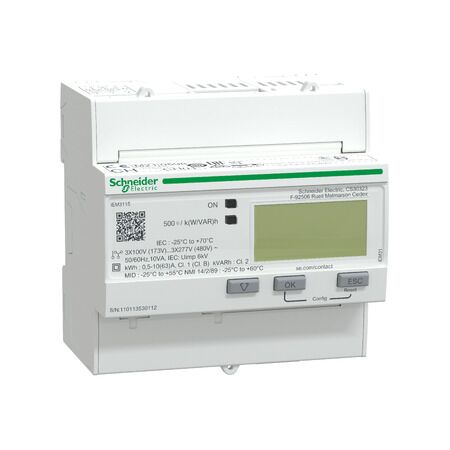

Hour Meter 63A D-CON MUL-TARIF | Multi-Tariff Capability | LCD Display | MID Certified | @Pack of 1 | by Clipsal
The Hour Meter 63A D-CON MUL-TARIF is designed for precise energy monitoring, featuring multi-tariff capability and a clear LCD display. Ideal for residential, commercial, and industrial applications, this MID certified meter supports flexible billing and advanced monitoring with its two digital inputs. Compact and easy to install on DIN rails, it’s perfect for energy efficiency initiatives.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hour Meter 63A D-CON MUL-TARIF | Multi-Tariff Capability | LCD Display | MID Certified | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9MEM3115
Alternatively Known As: iEM3115 energy meter, Clipsal multi-tariff meter, 63A energy meter, SCHA9MEM3115, MID certified energy meter, digital hour meter
Technical Specifications
- Rated current: 63A direct connection
- Voltage: 230/400V AC
- Frequency: 50/60Hz
- Display: LCD
- Inputs: 2 digital
- Accuracy: Class 1 (active energy)
- MID certified (Measuring Instruments Directive)
- Mounting: DIN rail
- Communication: None (basic model)
- Dimensions (H x L x W): 90mm x 64mm x 36mm
- Weight: 0.25 kg
Key Features
- Direct connected energy meter up to 63A
- Multi-tariff capability for flexible billing
- MID certified for legal metrology compliance
- 2 digital inputs for advanced monitoring
- LCD display for clear energy readings
- Compact DIN rail mounting design
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Residential and commercial energy monitoring
- Industrial facilities for sub-metering
- Multi-tariff energy billing
- Panel boards and distribution boards
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Supports multi-tariff billing to encourage off-peak energy use
- Compact design reduces material usage
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Hour Meter 63A D-CON MUL-TARIF SCHA9MEM3115 is available for immediate purchase. Ideal for energy monitoring and multi-tariff billing in residential, commercial, and industrial settings.
