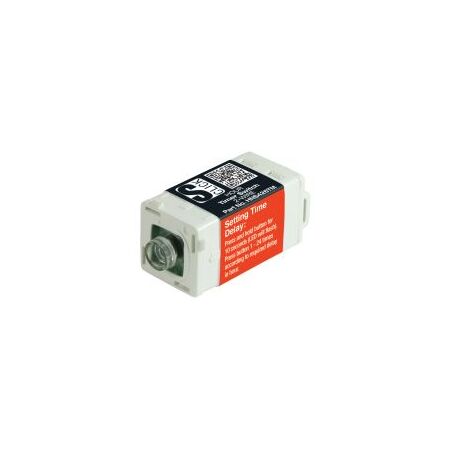

Hour Timer Switch Mech 2-Wire 240V 1.7A S-Premium S-Click
S-Click S-Premium hour timer mech features 2-wire 240V 1.7A rating and 1-24 hour auto-off delay with retained settings. Ideal for Clipsal Saturn plates.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: S-Premium Hour Timer Mech, 2-Wire Hour Timer Switch, Programmable Hour Timer Mechanism
Technical Specifications
- Product Type: 2-wire programmable hour timer switch mechanism
- Operating Voltage: 220–240V AC, 50Hz
- Maximum Current: 1.7A
- Maximum Load: 400VA
- Minimum Load: 10VA
- Timer Range: 1–24 hours in 1-hour increments
- Operating Temperature: 0°C to +50°C
- Indicator: Amber LED status indicator
- Functions: Timer mode and Boost mode
- Memory: Settings retained after power loss
- Terminals: Screw terminals for 0.5–1.5mm² stranded conductors
- Compatible Plates: Clipsal Saturn and Saturn Zen style wall plates
- Load Compatibility: Incandescent, 240V halogen, dimmable CFL and compatible dimmable LED lamps
- Load Restrictions: Not suitable for fans, motors, contactors, relays, transformers or iron-core ballasts
- Dimensions (H x L x W): 115mm x 40mm x 70mm
- Weight: 0.2 kg
Key Features
- Two-wire design for retrofit installations
- Automatically switches connected lighting or compatible small heating loads off after the programmed period
- Programmable 1–24 hour time-out with retained settings
- Boost mode can extend operation to double the normal timer period, up to 24 hours
- Quick tap operation for switching the connected load off
- Amber LED provides operating status and time-out warning
- Designed to suit Clipsal Saturn and Saturn Zen style wall plates
- Suitable for remote momentary switch operation
- Solid-state switching mechanism
Professional Installation Requirements
- Must be installed as part of a fixed-wire electrical installation by a licensed electrical contractor or suitably qualified person, in accordance with the manufacturer's instructions and applicable wiring rules.
Applications
- Bathroom heated towel rails and heated mirrors within the rated load
- Security and garden lighting
- Hallway, garage, laundry and wardrobe lighting
- Domestic lighting retrofit applications
- Timed operation of compatible incandescent, halogen, dimmable CFL and dimmable LED loads
Standards & Compliance
- AS 60669.2.1
- CISPR 15
Environmental Benefits
- Automatically limits operating time, helping reduce energy consumption caused by lights or compatible heaters being left on unnecessarily
- Retrofit design can extend the useful life of existing wall-plate installations without replacing the complete switch assembly
- Solid-state construction has no mechanical switching contacts subject to routine wear, supporting longer service life
Warranty Information
12-month warranty against manufacturing and material defects from the date of invoice to the initial purchaser, conditional on correct installation by a licensed electrical contractor and operation within the specified conditions.
Available Now
Available through S-Click/CABAC and authorised Australian electrical distributors.
