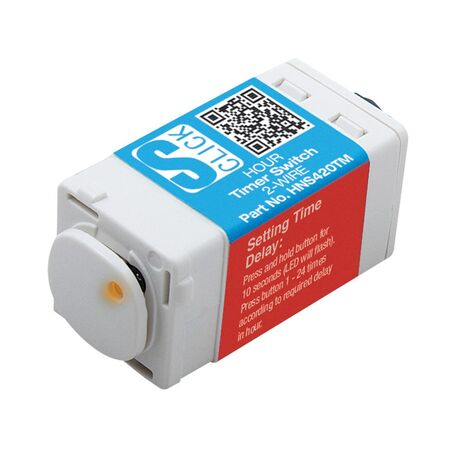

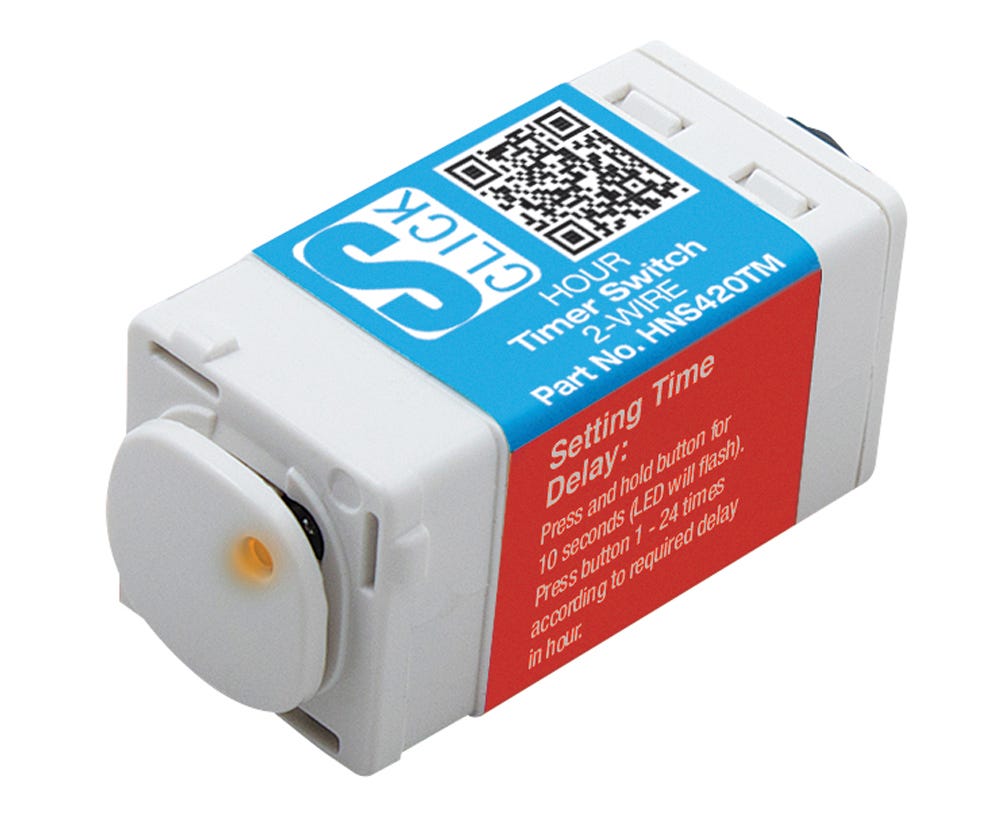

Hourly Mechanical Timer 2-Wire 240V | 1.7A Current Rating | Boost Mode & LED Indicator | @Each of 1 | by Cabac
The Hourly Mechanical Timer 2-Wire 240V is perfect for controlling domestic lighting and small heaters, featuring a 1.7A current rating and a timer range of 1 to 24 hours. With a boost mode that doubles the programmed run time and an amber LED indicator for status and expiry warnings, this timer ensures energy efficiency and convenience in your home.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hourly Mechanical Timer 2-Wire 240V | 1.7A Current Rating | Boost Mode & LED Indicator | @Each of 1 | by Cabac
Brand: Cabac
SKU: HNS420TM
Alternatively Known As: Programmable Hourly Timer Switch, Mechanical Light Timer, 2-Wire Timer Switch, Cabac HNS420TM Timer
Technical Specifications
- Voltage: 240V AC
- Current Rating: 1.7A
- Timer Range: 1 to 24 hours in hour increments

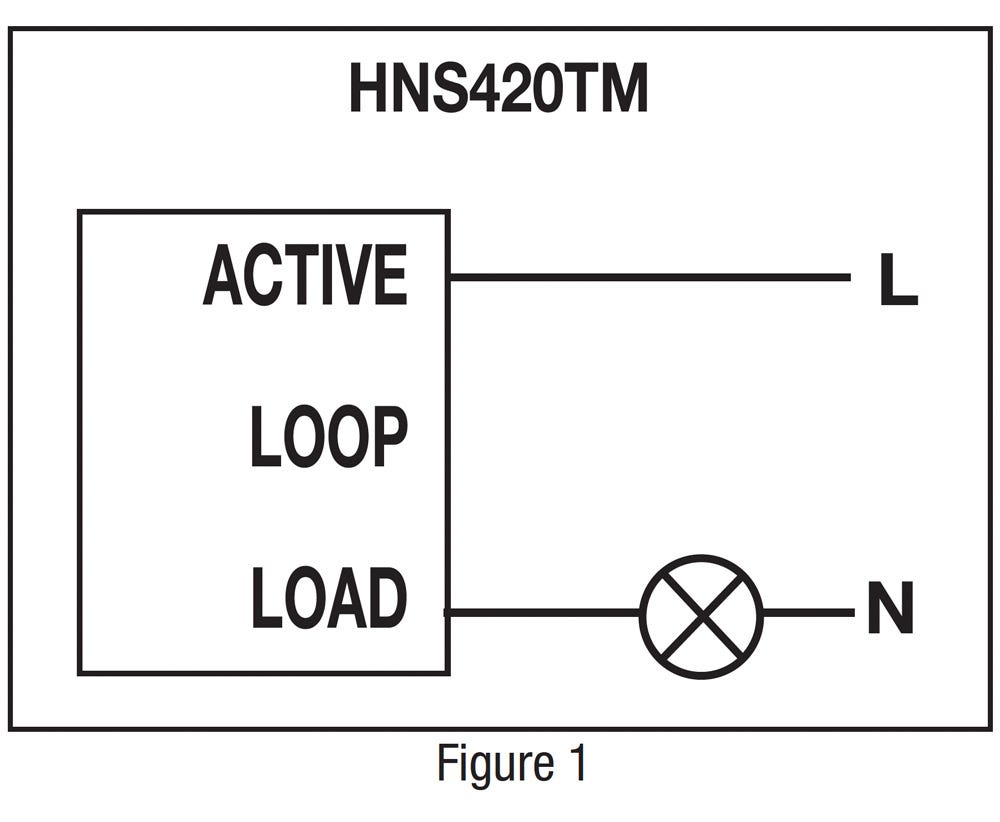

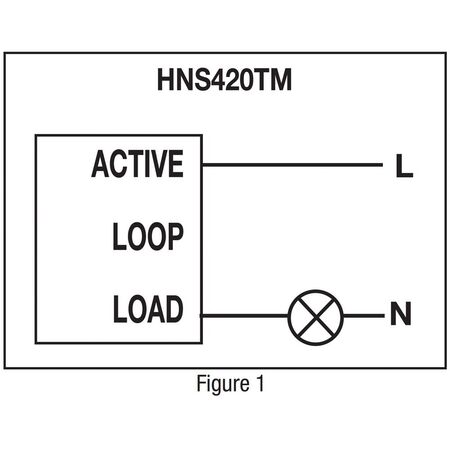

- Wiring: 2-wire connection
- LED Indicator: Amber status and expiry warning
- Boost Mode: Doubles programmed run time up to 24 hours
- Memory: Retains settings after power loss
- Dimensions (H x L x W): 50mm x 60mm x 50mm
- Weight: 0.1 kg
Key Features
- 2-in-1 programmable timer switch for lights and small heaters
- Time delay programmable from 1 to 24 hours in hour increments
- Settings retained after power loss
- Manual override to turn off lights or appliances instantly
- Amber LED status indicator with expiry warning
- Boost mode doubles the programmed run time up to 24 hours
- Simple programming with button press
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper wiring.
Applications
- Domestic lighting control
- Small heater control such as towel rails
- Retrofitting to existing light fixtures
- Areas requiring timed lighting or heating
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps reduce energy consumption by automatically turning off lights and heaters when not needed
- Supports energy efficiency in domestic and commercial settings
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Cabac Hourly Mechanical Timer 2-Wire 240V 1.7A is available now for immediate purchase. Ideal for domestic lighting and small heater control applications.
