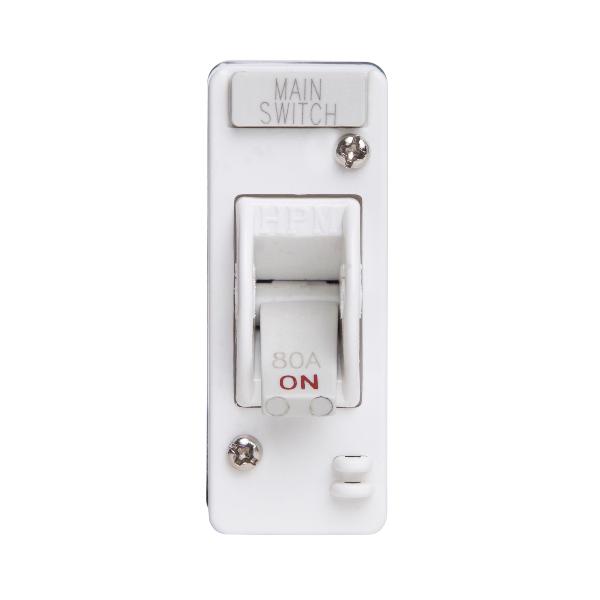

HPM 1P 80A 240V a.c. Front Entry Surface Mount Mains Switch | Heavy-Duty Silver Contacts | Padlock Provision | by HPM
The HPM 1P 80A 240V a.c. Front Entry Surface Mount Mains Switch is designed for reliable electrical isolation and control in residential, commercial, and industrial applications. Featuring heavy-duty double-break silver contacts and a padlock provision for lockable isolation, this switch ensures safety and durability. Ideal for motor control, it complies with AS/NZS 3133 standards, making it a trusted choice for electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HPM 1P 80A 240V a.c. Front Entry Surface Mount Mains Switch | Heavy-Duty Silver Contacts | Padlock Provision | by HPM
Brand: HPM
SKU: F180
Alternatively Known As: HPM Surface Mount Main Switch, HPM 80A Mains Switch, HPM Front Entry Mains Switch
Technical Specifications
- Rated Current: 80A
- Voltage: 240V a.c.
- Pole: Single Pole (1P)
- Contact Type: Heavy-duty double-break silver contacts
- Terminals: Tunnel-type clamping on line and load sides
- Mounting: Surface mount with 60 x 16mm mounting centres
- Padlock Provision: Accepts padlock up to Ø5mm
- Switch Rating: M rated to AS3133 for motor use
- Dimensions (H x L x W): 97mm x 45mm x 97mm
- Weight: 0.11 kg
Key Features
- Heavy-duty, double-break silver contacts for enhanced durability and performance
- Tunnel-type clamping terminals on both line and load sides
- M rated to AS3133, suitable for use on electric motors
- Provision for padlock insertion (up to Ø5mm) for lockable isolation
- Front entry design for easy access
- Surface mount installation with mounting holes at top right and bottom left corners
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Residential electrical isolation and control
- Commercial electrical power management
- Industrial motor control and isolation
Standards & Compliance
- Complies with AS/NZS 3133 – Switches for household and similar fixed electrical installations
Environmental Benefits
- Enables safe isolation to prevent electrical hazards and reduce energy waste
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The HPM 1P 80A 240V a.c. Front Entry Surface Mount Mains Switch is available now for immediate purchase. Ideal for residential, commercial, and industrial electrical isolation and control applications.
