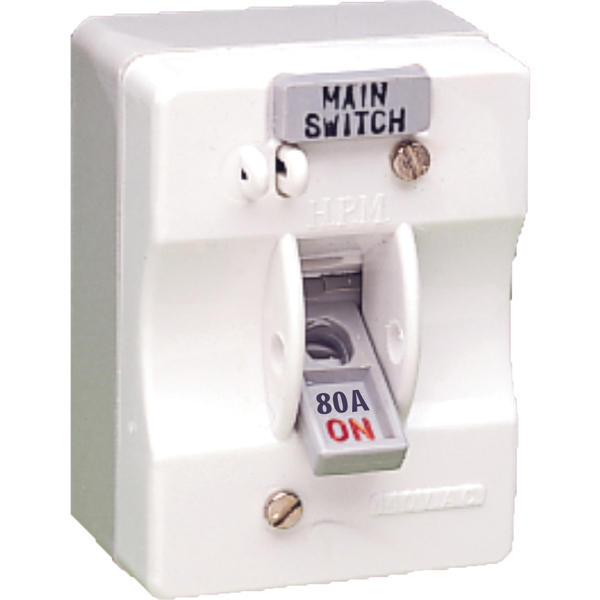

HPM 2P 80A 415V AC Back Entry Surface Mount Mains Switch | Double-Break Silver Contacts | Padlock Provision | @EA of 1 | by HPM
The HPM 2P 80A 415V AC Back Entry Surface Mount Mains Switch is designed for reliable electrical isolation in residential, commercial, and industrial settings. Featuring heavy-duty double-break silver contacts and tunnel-type clamping terminals, this switch ensures enhanced durability and performance. Ideal for safe isolation and motor control, it includes a padlock provision for added security.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HPM 2P 80A 415V AC Back Entry Surface Mount Mains Switch | Double-Break Silver Contacts | Padlock Provision | @EA of 1 | by HPM
Brand: HPM
SKU: B280
Alternatively Known As: Main Switch, Surface Mount Mains Switch, 2 Pole Mains Switch, Lockable Isolation Switch
Technical Specifications
- Poles: 2P
- Current Rating: 80A
- Voltage Rating: 415V AC
- Contact Type: Double-break silver contacts
- Terminal Type: Tunnel-type clamping terminals on line and load sides
- Mounting: Surface mount with back entry
- Mounting Hole Centres: 60 x 16mm
- Padlock Provision: Up to Ø5mm
- Dimensions (H x L x W): 97mm x 45mm x 97mm
- Weight: 0.15 kg
Key Features
- Heavy-duty, double-break silver contacts for enhanced durability and performance
- Tunnel-type clamping terminals on both line and load sides
- M rated to AS3133, suitable for use on electric motors
- Provision for padlock insertion (up to Ø5mm) for lockable isolation
- Back entry design for surface mounting
- Mounting holes at top right and bottom left corners with 60 x 16mm centres
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Residential electrical distribution boards
- Commercial and industrial electrical control panels
- Motor control and isolation
- Surface mounting electrical installations requiring safe isolation
Standards & Compliance
- Complies with AS/NZS 3133 – Switches for household and similar fixed electrical installations
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Supports safe electrical isolation to prevent energy wastage and electrical hazards
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The HPM 2P 80A 415V AC Back Entry Surface Mount Mains Switch is available for immediate purchase, ideal for electrical isolation in residential, commercial, and industrial applications.
