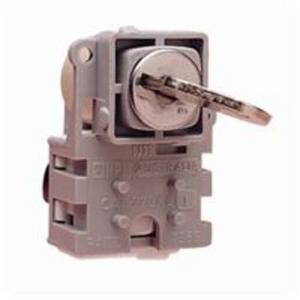

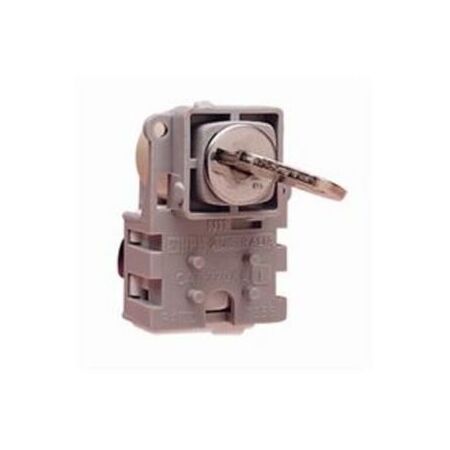

HPM Standard 10A Vertical Keylock Switch | SPDT Configuration | Removable Key in ON/OFF | White | @EA of 1 | by HPM
The HPM Standard 10A Vertical Removable On/Off Position Keylock Switch is designed for secure electrical control in residential and commercial settings. Featuring a single pole double throw (SPDT) configuration and a removable key in both ON and OFF positions, this switch is compatible with HPM's flexible 770 module range. Ideal for access control systems, it ensures safety and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HPM Standard 10A Vertical Keylock Switch | SPDT Configuration | Removable Key in ON/OFF | White | @EA of 1 | by HPM
Brand: HPM
SKU: 770KLIOMWE
Alternatively Known As: Keylock switch 10A, Vertical key switch, Removable key switch, SPDT keylock switch
Technical Specifications
- Current Rating: 10A
- Switch Type: Single pole double throw (SPDT)
- Module Compatibility: Flexible 770 module for HPM Excel, Linea, Architectural Metal and Standard ranges
- Key Removal: Possible in ON (I) or OFF (O) position
- Colour: White
- Cleaning: Use damp cloth only; avoid solvents and cleaning agents
- Dimensions (H x L x W): 80mm x 60mm x 50mm
- Weight: 0.15 kg
Key Features
- 10A keylock switch mechanism
- Flexible 770 module compatible with HPM Excel, Linea, Architectural Metal and Standard ranges
- Single pole double throw (SPDT) configuration
- Key removable in ON (I) or OFF (O) position
- Available in white color
- 1-2 way & loop switching capability
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Residential electrical control panels
- Commercial and industrial switchboards
- Security and access control systems requiring keylock switches
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The HPM Standard 10A Vertical Removable On/Off Position Keylock Switch White is available for immediate purchase, ideal for secure electrical switching applications in residential, commercial, and industrial settings.
