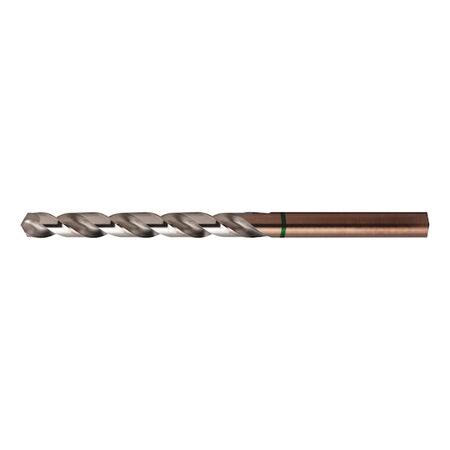

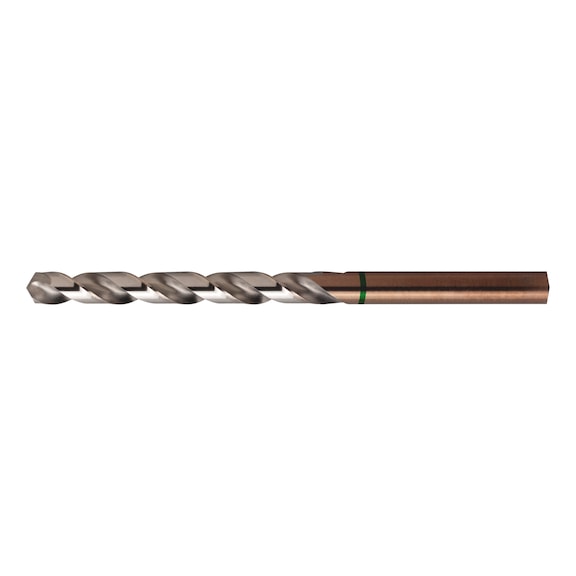

HSCo Drill Bit 2.5mm | Oxide Finish | Self-Centring Tip | by Wurth
The HSCo Drill Bit 2.5mm is designed for precision machining in stainless steel, titanium, and cast iron. With a self-centring tip and oxide finish, it ensures fast drilling and optimal chip removal. Ideal for both professional and DIY users, this drill bit offers enhanced durability and performance, making it perfect for a variety of applications in metalworking and industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron, Stainless steel, Titanium
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 2.5 mm
- Length (l1): 57 mm
- Chip flute length (l2): 30 mm
- Shank diameter: 2.5 mm
- Shank style: Cylindrical
- Surface finish: Oxide
- Cutting material: HSCo
- Type: RN OXIDE
- Tip angle: 130 degrees
- Service life rating: 3 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 3 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 3 of 4 points
- Suitable for drills, cordless drills, upright drilling machines: 3 of 4 points
- Suitable for milling-drilling centres: 2 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to 1200 N/mm²
- Material sub-groups include various steels, cast irons, titanium alloys, copper, bronze, brass, and plastics
- Dimensions (H x L x W): 57mm x 57mm x 2.5mm
- Weight: 0.1 kg
Key Features
- Fast drilling with optimal chip removal due to reduced shank diameter from 13.0 mm to 12.7 mm
- Ideal for core holes with enhanced service life compared to uncoated HSS drill bits
- Product packaging made from 100% PCR recycled plastic and is fully recyclable
- Self-centring tip with 130-degree angle for precise drilling
- Oxide finish surface for durability
- High-speed cobalt (HSCo) cutting material for enhanced performance
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling machines and cordless screwdrivers.
Applications
- Machining stainless steel (V2A, V4A), heat-resistant steels, and titanium
- General applications in steel up to 1200 N/mm² tensile strength
- Drilling in cast iron and various metals including copper, bronze, brass, and plastics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- Fully recyclable product packaging reduces environmental impact
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth 2.5mm HSCo Drill Bit is available for immediate purchase, ideal for precision machining in metalworking and industrial applications.
