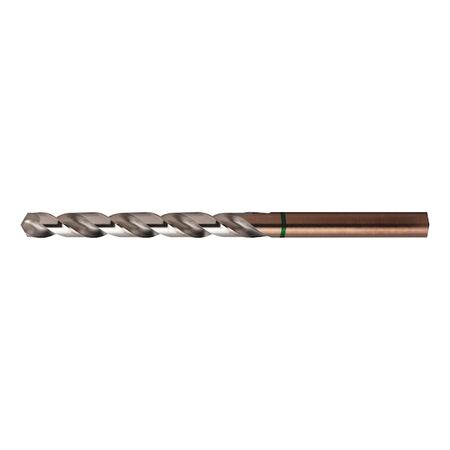

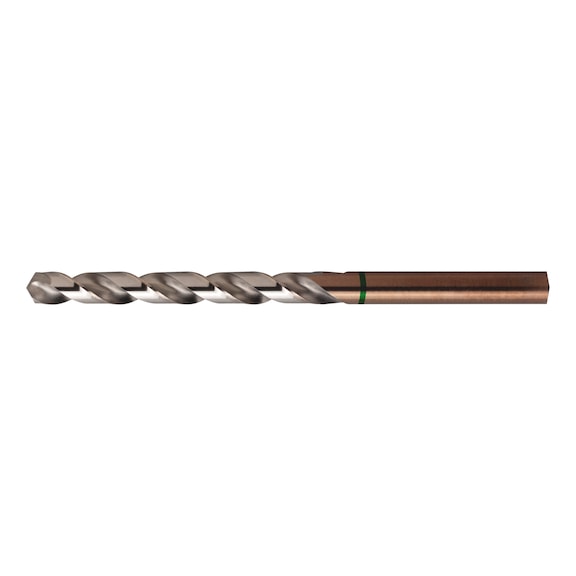

HSCo Drill Bit 3.1 mm | Oxide Finish | Self-Centring Design | 130° Tip Angle | by Wurth
The HSCo Drill Bit 3.1 mm is engineered for precision machining, featuring an oxide finish for enhanced durability and a self-centring design for accurate drilling. Ideal for stainless steel, titanium, and cast iron applications, this drill bit ensures optimal chip removal and a longer service life compared to standard HSS bits, making it perfect for industrial and workshop settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HSCo Drill Bit 3.1 mm | Oxide Finish | Self-Centring Design | 130° Tip Angle | by Wurth
Brand: Wurth
SKU: 626000310
Alternatively Known As: HSCo Drill Bit, Oxide Finish Drill Bit, Stainless Steel Drill Bit, Titanium Drill Bit, High-Speed Cobalt Drill Bit
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron, Stainless steel, Titanium
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 3.1 mm
- Length: 65 mm
- Chip flute length: 36 mm
- Shank diameter: 3.1 mm
- Shank style: Cylindrical
- Surface finish: Oxide
- Cutting material: HSCo
- Type: RN OXIDE
- Tip angle: 130 degrees
- Service life rating: 3 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 3 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 3 of 4 points
- Suitable for drill rating: 3 of 4 points
- Suitable for cordless drills rating: 3 of 4 points
- Suitable for upright drilling machine rating: 3 of 4 points
- Suitable for milling-drilling centre rating: 2 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to: 1200 N/mm²
- Material sub-groups include various steels, cast irons, titanium alloys, copper, bronze, brass, and plastics
- Dimensions (H x L x W): 65mm x 65mm x 3.1mm
- Weight: 0.1 kg
Key Features
- Fast drilling with optimal chip removal due to reduced shank diameter from 13.0 mm to 12.7 mm
- Ideal for core holes with enhanced service life compared to uncoated HSS drill bits
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
- Self-centring design for precise drilling
- Oxide finish surface for durability
- 130 degree tip angle for efficient cutting
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling machines and cordless screwdrivers by trained operators.
Applications
- Machining stainless steel (V2A, V4A), heat-resistant steels, and titanium
- General applications in steel up to 1200 N/mm² tensile strength
- Suitable for cast iron and various metals including copper, bronze, brass, and plastics
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth for specific warranty details.
Available Now
The Wurth HSCo Drill Bit 3.1 mm is available for immediate purchase, ideal for precision machining in industrial and workshop settings.
