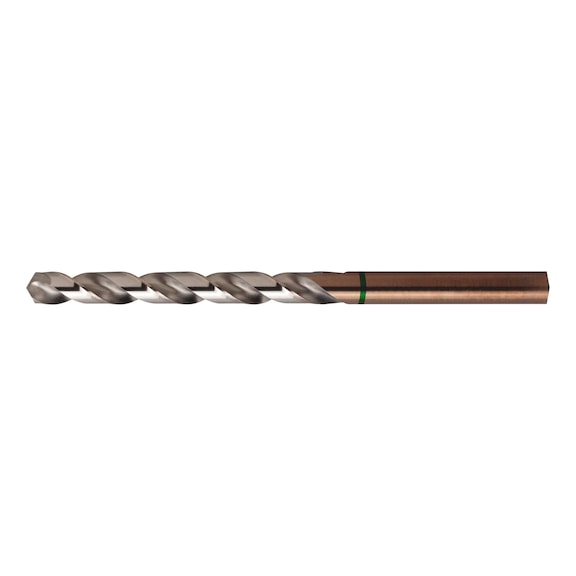

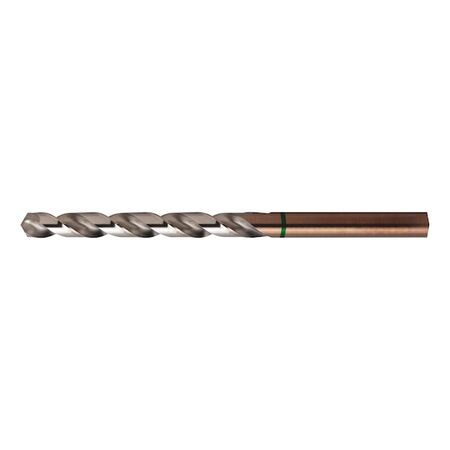

HSCo Drill Bit 3.2mm | Oxide Finish | Self-Centring Design | 130-Degree Tip Angle | by Wurth
The HSCo Drill Bit 3.2mm is engineered for fast drilling in stainless steel, titanium, and cast iron, featuring an oxide finish for enhanced durability. With a self-centring design and a 130-degree tip angle, it ensures precise drilling and optimal chip removal, making it ideal for industrial and workshop applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron, Stainless steel, Titanium
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 3.2 mm
- Length: 65 mm
- Chip flute length: 36 mm
- Shank diameter: 3.2 mm
- Shank style: Cylindrical
- Surface finish: Oxide
- Cutting material: HSCo
- Type: RN OXIDE
- Tip angle: 130 degrees
- Service life rating: 3 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 3 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 3 of 4 points
- Suitable for drill rating: 3 of 4 points
- Suitable for cordless drills rating: 3 of 4 points
- Suitable for upright drilling machine rating: 3 of 4 points
- Suitable for milling-drilling centre rating: 2 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to: 1200 N/mm²
- Material sub-groups: General structural steels, Non-alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron variants, Stainless steels variants, Titanium alloys, Spring steels, Magnesium alloys, Copper, Bronze, Brass, Thermoset and thermoplastic plastics
- Dimensions (H x L x W): 65mm x 65mm x 3.2mm
- Weight: 0.1 kg
Key Features
- Fast drilling with optimal chip removal due to reduced shank diameter from 13.0 mm to 12.7 mm
- Ideal for core holes with enhanced service life compared to uncoated HSS drill bits
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
- Self-centring design for precise drilling
- Oxide finish surface for durability
- 130-degree tip angle for efficient cutting
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling machines and cordless screwdrivers by trained operators.
Applications
- Machining stainless steel (V2A, V4A), heat-resistant steels, and titanium
- General applications in steel up to 1200 N/mm² tensile strength
- Suitable for cast iron and various metals including copper, bronze, brass, and plastics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth HSCo Drill Bit 3.2mm is available for immediate purchase, ideal for precision machining in industrial and workshop settings.
