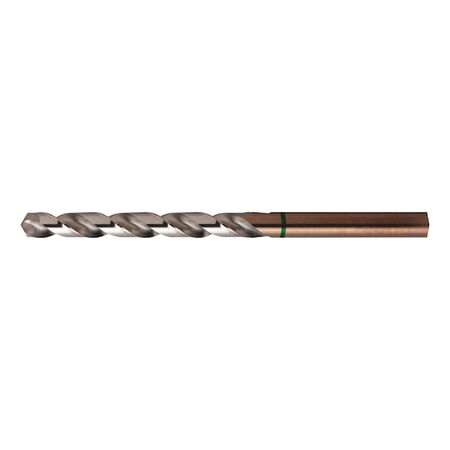

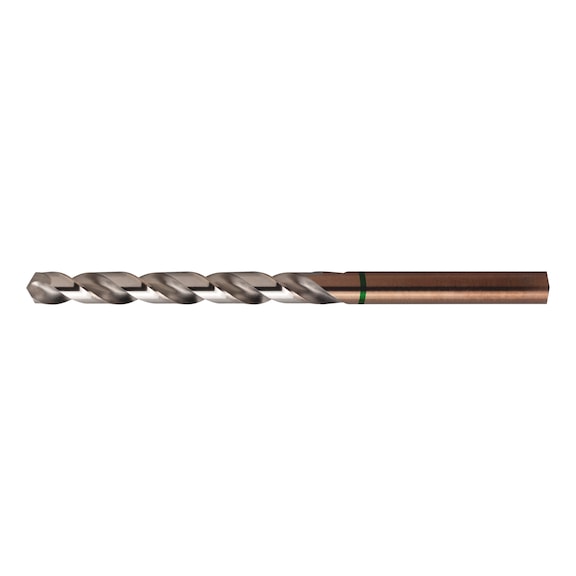

HSCo Drill Bit 3.5mm | Oxide Finish | Self-Centring Design | 130° Tip Angle | by Wurth
The HSCo Drill Bit 3.5mm is engineered for fast drilling in stainless steel, titanium, and cast iron, featuring an oxide finish for enhanced durability. With a self-centring design and a 130° tip angle, it ensures optimal chip removal and precision in machining applications. Ideal for professionals, this drill bit is perfect for use in industrial and workshop settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron, Stainless steel, Titanium
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 3.5 mm
- Length: 70 mm
- Chip flute length: 39 mm
- Shank diameter: 3.5 mm
- Shank style: Cylindrical
- Surface finish: Oxide
- Cutting material: HSCo
- Type: RN OXIDE
- Tip angle: 130 degrees
- Service life rating: 3 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 3 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 3 of 4 points
- Suitable for drill rating: 3 of 4 points
- Suitable for cordless drills rating: 3 of 4 points
- Suitable for upright drilling machine rating: 3 of 4 points
- Suitable for milling-drilling centre rating: 2 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to 1200 N/mm²
- Material sub-groups include various steels, cast irons, titanium alloys, copper, bronze, brass, and plastics
- Dimensions (H x L x W): 70mm x 70mm x 3.5mm
- Weight: 0.1 kg
Key Features
- Fast drilling with optimal chip removal due to reduced shank diameter from 13.0 mm to 12.7 mm
- Ideal for core holes
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
- Self-centring design
- Oxide finish surface for enhanced durability
- 130 degree tip angle for efficient cutting
Professional Installation Requirements
- Use by trained professionals or under supervision is recommended to ensure safety and optimal performance.
Applications
- Machining stainless steel (V2A, V4A), heat-resistant steels, and titanium
- General applications in steel up to 1200 N/mm² tensile strength
- Suitable for cast iron machining
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth 3.5mm HSCo Drill Bit is available for immediate purchase, ideal for machining stainless steel, titanium, and cast iron in industrial and workshop settings.
