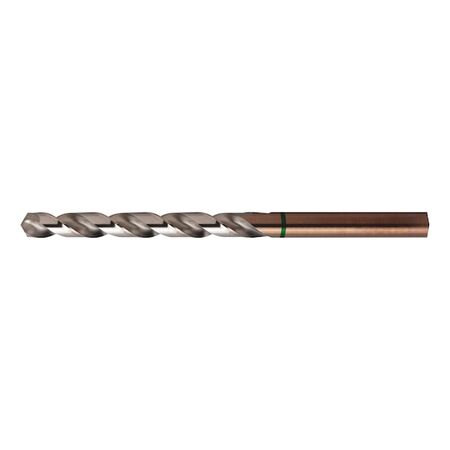

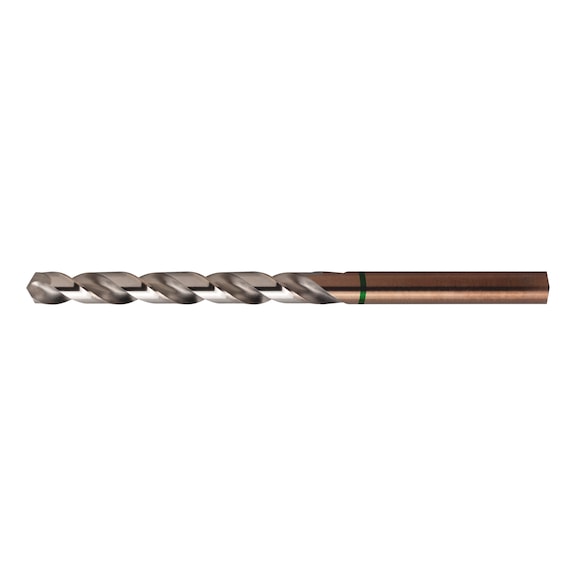

HSCo Drill Bit 3.0mm | Oxide Finish | Self-Centring Design | 130-Degree Tip Angle | by Wurth
The HSCo Drill Bit 3.0mm is engineered for fast drilling in stainless steel, titanium, and cast iron. With an oxide finish for enhanced durability and a self-centring design, this drill bit ensures optimal chip removal and efficient drilling. Ideal for use with standard drilling equipment, it’s perfect for professionals seeking reliable performance in demanding machining applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron, Stainless steel, Titanium
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 3.0 mm
- Length: 61 mm
- Chip flute length: 33 mm
- Shank diameter: 3.0 mm
- Shank style: Cylindrical
- Surface finish: Oxide
- Cutting material: HSCo
- Type: RN OXIDE
- Tip angle: 130 degrees
- Service life rating: 3 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 3 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 3 of 4 points
- Suitable for drill rating: 3 of 4 points
- Suitable for cordless drills rating: 3 of 4 points
- Suitable for upright drilling machine rating: 3 of 4 points
- Suitable for milling-drilling centre rating: 2 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to 1200 N/mm²
- Material sub-groups include various steels, cast irons, titanium alloys, copper alloys, and plastics
- Dimensions (H x L x W): 61mm x 61mm x 3mm
- Weight: 0.1 kg
Key Features
- Fast drilling with optimal chip removal due to reduced shank diameter from 13.0 mm to 12.7 mm
- Ideal for core holes
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
- Self-centring design
- Oxide finish surface for durability
- High-speed cobalt (HSCo) cutting material
- 130-degree tip angle for efficient drilling
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling equipment by trained personnel.
Applications
- Machining stainless steel (V2A, V4A), heat-resistant steels, and titanium
- General steel machining up to 1200 N/mm² tensile strength
- Drilling in cast iron
- Suitable for use with drills, cordless screwdrivers, and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth 3.0mm HSCo Oxide Finish Drill Bit is available for immediate purchase, ideal for machining applications involving stainless steel, titanium, and cast iron.
