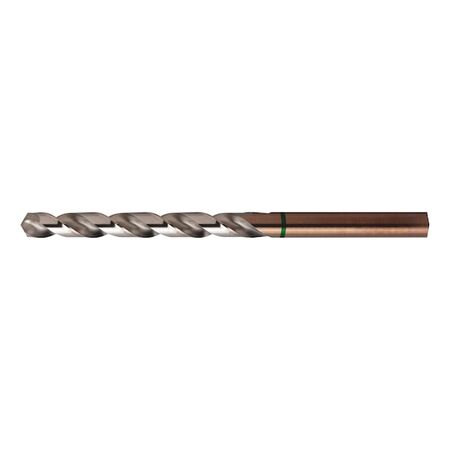

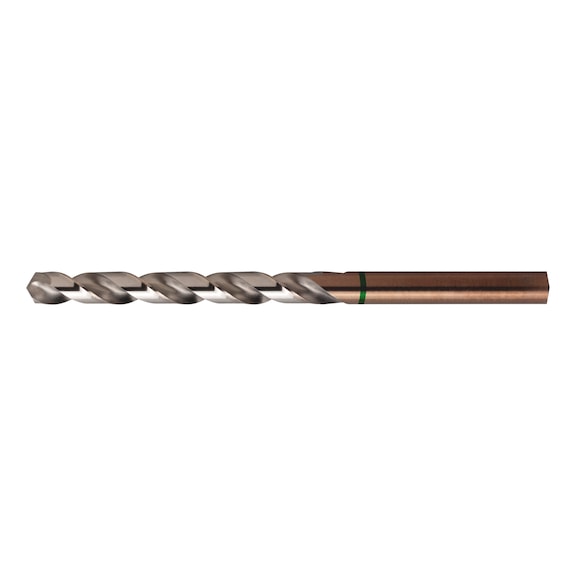

HSCo Drill Bit 4.0mm | Oxide Finish | 130-Degree Tip Angle | Self-Centring Design | by Wurth
The HSCo Drill Bit 4.0mm is engineered for fast drilling in stainless steel, titanium, and cast iron, featuring an oxide finish for enhanced durability. With a 130-degree tip angle and self-centring design, it ensures optimal chip removal and precision. Ideal for use with standard drilling machines and cordless screwdrivers, this drill bit is perfect for both industrial and workshop applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron, Stainless steel, Titanium
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 4.0 mm
- Length: 75 mm
- Chip flute length: 43 mm
- Shank diameter: 4.0 mm
- Shank style: Cylindrical
- Surface finish: Oxide
- Cutting material: HSCo
- Type: RN OXIDE
- Tip angle: 130 degrees
- Service life rating: 3 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 3 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 3 of 4 points
- Suitable for drill rating: 3 of 4 points
- Suitable for cordless drills rating: 3 of 4 points
- Suitable for upright drilling machine rating: 3 of 4 points
- Suitable for milling-drilling centre rating: 2 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to: 1200 N/mm²
- Material sub-groups: General structural steels, Non-alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron variants, Stainless steels variants, Titanium alloys, Spring steels, Magnesium alloys, Copper and bronze variants, Brass variants, Thermoset and thermoplastic plastics
- Dimensions (H x L x W): 75mm x 75mm x 4mm
- Weight: 0.1 kg
Key Features
- Fast drilling with optimal chip removal due to reduced shank diameter from 13.0 mm to 12.7 mm
- Ideal for core holes
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
- Self-centring design
- Oxide finish surface for durability
- High-speed cobalt (HSCo) cutting material
- 130-degree tip angle for efficient drilling
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling machines and cordless screwdrivers by trained operators.
Applications
- Machining stainless steel (V2A, V4A), heat-resistant steels, and titanium
- General steel machining up to 1200 N/mm² tensile strength
- Cast iron drilling
- Suitable for use with drills, cordless screwdrivers, and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- Packaging is fully recyclable, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
The Wurth 4.0mm HSCo Oxide Finish Drill Bit is available for immediate purchase, ideal for machining stainless steel, titanium, and cast iron in industrial and workshop settings.
