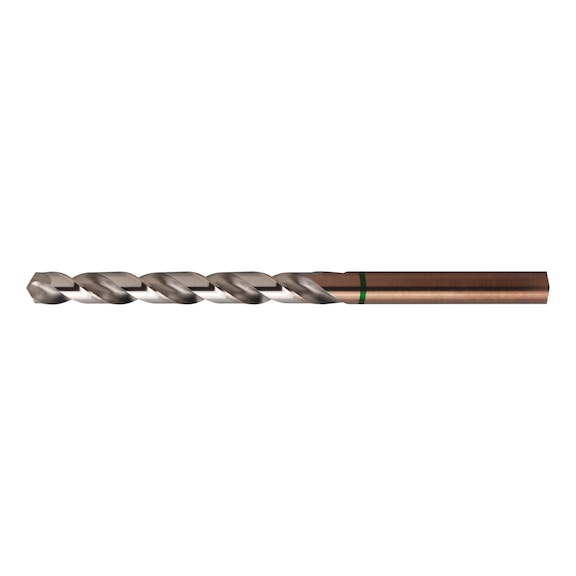

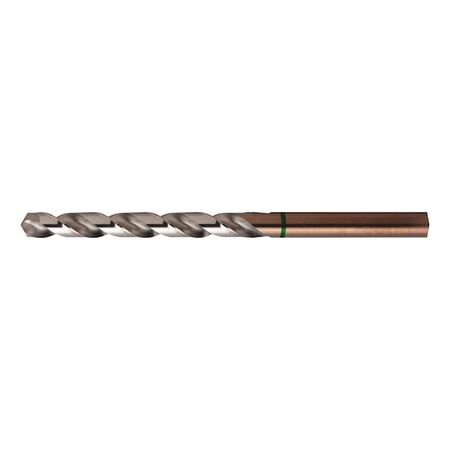

HSCo Oxide Finish Drill Bit 1.5mm | ZEBRA-Premium Quality | Self-Centring Design | by Wurth
The HSCo Oxide Finish Drill Bit 1.5mm is engineered for precision machining in stainless steel, titanium, and cast iron. With a self-centring design and a 130-degree tip angle, it ensures fast drilling and optimal chip removal. Ideal for use with standard drilling machines and cordless screwdrivers, this drill bit is perfect for professionals seeking durability and efficiency in their projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron, Stainless steel, Titanium
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 1.5 mm
- Length (l1): 40 mm
- Chip flute length (l2): 18 mm
- Shank diameter: 1.5 mm
- Shank style: Cylindrical
- Surface: Oxide finish
- Cutting material: HSCo
- Type: RN OXIDE
- Angle of the tip: 130 Degree
- Service life rating: 3 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 3 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 3 of 4 points
- Suitable for drill rating: 3 of 4 points
- Suitable for cordless drills rating: 3 of 4 points
- Suitable for upright drilling machine rating: 3 of 4 points
- Suitable for milling-drilling centre rating: 2 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to: 1200 N/mm²
- Material sub-groups include various steels, cast irons, titanium alloys, copper alloys, and plastics
- Dimensions (H x L x W): 40mm x 40mm x 1.5mm
- Weight: 0.1 kg
Key Features
- Fast drilling with optimal chip removal due to reduced shank diameter from 13.0 mm to 12.7 mm
- Ideal for core holes
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
- Self-centring design
- Oxide finish surface for enhanced durability
- High-speed cobalt (HSCo) cutting material
- 130-degree tip angle for efficient drilling
- ZEBRA-Premium quality
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling machines and cordless screwdrivers by trained operators.
Applications
- Machining stainless steel (V2A, V4A), heat-resistant steels, and titanium
- General steel machining up to 1200 N/mm² tensile strength
- Drilling in cast iron
- Suitable for use with drills, cordless screwdrivers, and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth High-Performance HSCo Oxide Finish Drill Bit 1.5mm is available for immediate purchase, ideal for precision machining in industrial and workshop settings.
