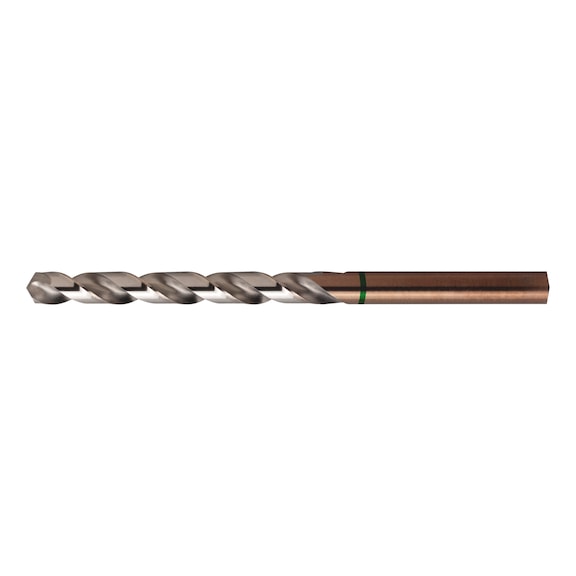

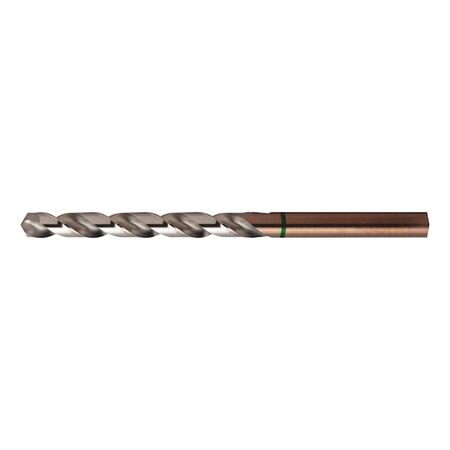

HSCo Oxide Finish Drill Bit | 1.0 mm Diameter | Self-Centring Tip | Premium Quality | by Wurth
The HSCo Oxide Finish Drill Bit is designed for precision machining, featuring a 1.0 mm diameter and a self-centring tip with a 130-degree angle. Ideal for drilling stainless steel, titanium, and cast iron, this premium quality bit ensures optimal chip removal and durability, making it perfect for both industrial and workshop applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron, Stainless steel, Titanium
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 1.0 mm
- Length (l1): 34 mm
- Chip flute length (l2): 12 mm
- Shank diameter: 1.0 mm
- Shank style: Cylindrical
- Surface: Oxide finish
- Cutting material: HSCo
- Type: RN OXIDE
- Angle of the tip: 130 Degree
- Service life rating: 3 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 3 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 3 of 4 points
- Suitable for drill rating: 3 of 4 points
- Suitable for cordless drills rating: 3 of 4 points
- Suitable for upright drilling machine rating: 3 of 4 points
- Suitable for milling-drilling centre rating: 2 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to: 1200 N/mm²
- Material sub-groups: General structural steels, Non-alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron, Ductile iron, Malleable cast iron, White cast iron, Stainless steels (sulphurated, austenitic, martensitic), Titanium and alloys, Spring steels, Magnesium alloys, Copper (low-alloyed), Bronze (short and long-chipping), Brass (short and long-chipping), Thermoset and thermoplastic plastics
- Dimensions (H x L x W): 34mm x 34mm x 1mm
- Weight: 0.1 kg
Key Features
- Fast drilling with optimal chip removal due to reduced shank diameter from 13.0 mm to 12.7 mm
- Ideal for core holes
- Oxide finish surface for enhanced durability
- Self-centring tip with 130-degree angle
- Made from high-speed cobalt steel (HSCo) for premium quality and longer service life
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling machines and cordless screwdrivers by trained operators.
Applications
- Machining stainless steel (V2A, V4A), heat-resistant steels, and titanium
- General steel machining up to 1200 N/mm² tensile strength
- Drilling in cast iron
- Suitable for use with drills, cordless screwdrivers, and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth HSCo Oxide Finish Drill Bit is available for immediate purchase, ideal for precision machining in industrial and workshop settings.
