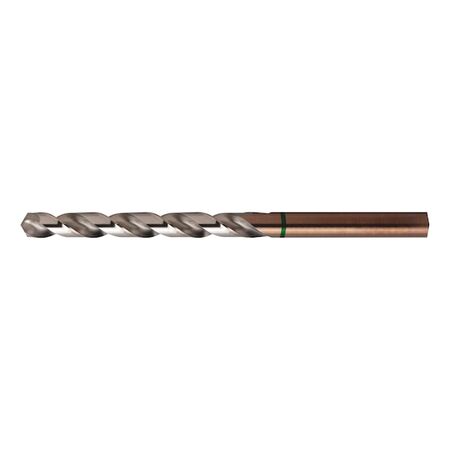

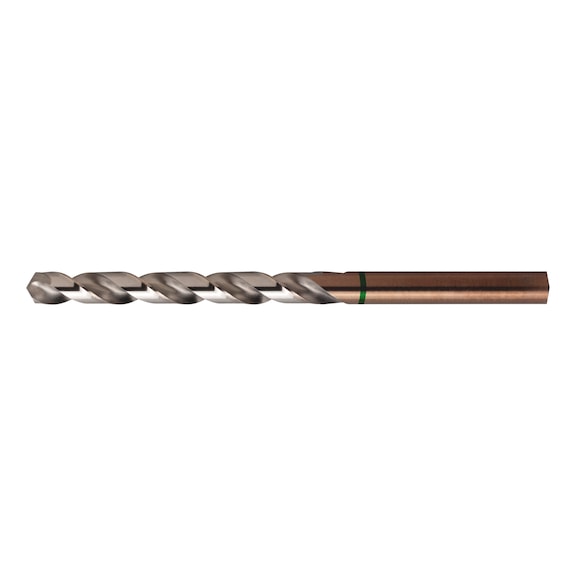

HSCo Oxide Finish Drill Bit 2.0mm | Fast Drilling | Self-Centring Design | by Wurth
The HSCo Oxide Finish Drill Bit 2.0mm is engineered for fast drilling in stainless steel, titanium, and cast iron. With a self-centring design and a 130-degree tip angle, it ensures optimal chip removal and precision. Ideal for use with drills and cordless screwdrivers, this drill bit is perfect for professionals seeking durability and efficiency in their machining tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HSCo Oxide Finish Drill Bit 2.0mm | Fast Drilling | Self-Centring Design | by Wurth
Brand: Wurth
SKU: 626000200
Alternatively Known As: HSCo Drill Bit, Oxide Finish Drill Bit, Stainless Steel Drill Bit, Titanium Drill Bit, High-Speed Cobalt Drill Bit
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron, Stainless steel, Titanium
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 2.0 mm
- Length: 49 mm
- Chip flute length: 24 mm
- Shank diameter: 2.0 mm
- Shank style: Cylindrical
- Surface finish: Oxide
- Cutting material: HSCo
- Type: RN OXIDE
- Tip angle: 130 degrees
- Service life rating: 3 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 3 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 3 of 4 points
- Suitable for drill rating: 3 of 4 points
- Suitable for cordless drills rating: 3 of 4 points
- Suitable for upright drilling machine rating: 3 of 4 points
- Suitable for milling-drilling centre rating: 2 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to: 1200 N/mm²
- Material sub-groups: General structural steels, Non-alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron variants, Stainless steels variants, Titanium alloys, Spring steels, Magnesium alloys, Copper and bronze variants, Brass variants, Thermoset and thermoplastic plastics
- Dimensions (H x L x W): 49mm x 49mm x 2mm
- Weight: 0.1 kg
Key Features
- Fast drilling with optimal chip removal due to reduced shank diameter from 13.0 mm to 12.7 mm
- Ideal for core holes
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
- Self-centring design
- Oxide finish surface for enhanced durability
- High-speed cobalt (HSCo) cutting material
- 130-degree tip angle for efficient drilling
Professional Installation Requirements
- Professional installation is not required; however, use with appropriate machinery and safety equipment is recommended.
Applications
- Machining stainless steel (V2A, V4A), heat-resistant steels, and titanium
- General steel machining up to 1200 N/mm² tensile strength
- Cast iron drilling
- Suitable for use with drills, cordless screwdrivers, and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
The Wurth High-Performance HSCo Oxide Finish Drill Bit 2.0mm is available for immediate purchase, ideal for precision machining in industrial and workshop settings.
