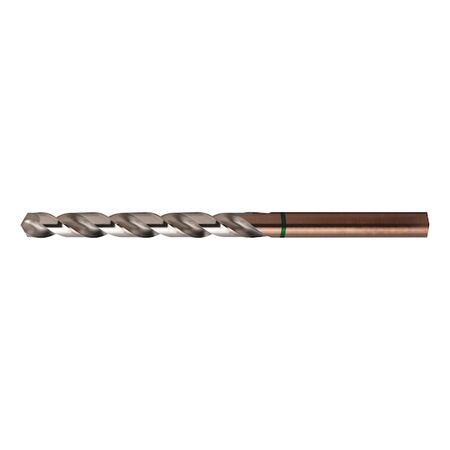

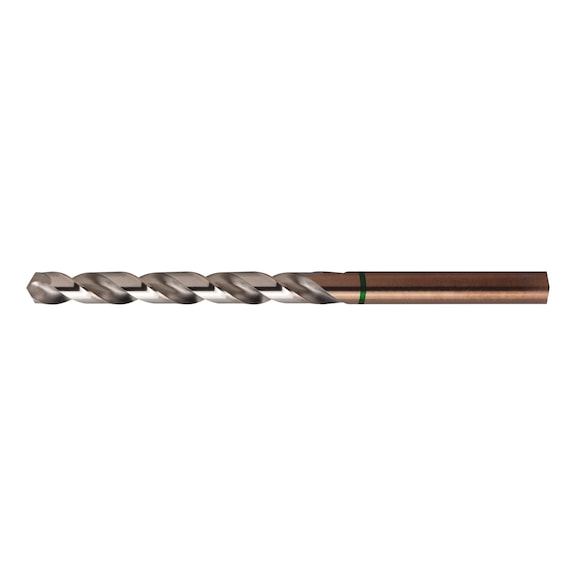

HSCo Oxide Finish Drill Bit | 3.3mm Diameter | 130 Degree Tip Angle | Self-Centring Design | by Wurth
The HSCo Oxide Finish Drill Bit is designed for fast drilling in stainless steel, titanium, and cast iron. With a 3.3mm diameter and a 130-degree tip angle, it ensures optimal chip removal and enhanced service life compared to standard HSS bits. Ideal for both industrial and workshop applications, this drill bit features a self-centring design for precise drilling, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HSCo Oxide Finish Drill Bit | 3.3mm Diameter | 130 Degree Tip Angle | Self-Centring Design | by Wurth
Brand: Wurth
SKU: 626000330
Alternatively Known As: HSCo Drill Bit, Oxide Finish Drill Bit, Stainless Steel Drill Bit, Titanium Drill Bit, High-Speed Cobalt Drill Bit
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron, Stainless steel, Titanium
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 3.3 mm
- Length: 65 mm
- Chip flute length: 36 mm
- Shank diameter: 3.3 mm
- Shank style: Cylindrical
- Surface finish: Oxide
- Cutting material: HSCo
- Type: RN OXIDE
- Tip angle: 130 degrees
- Service life rating: 3 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 3 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 3 of 4 points
- Suitable for drill rating: 3 of 4 points
- Suitable for cordless drills rating: 3 of 4 points
- Suitable for upright drilling machine rating: 3 of 4 points
- Suitable for milling-drilling centre rating: 2 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to: 1200 N/mm²
- Material sub-groups: General structural steels, Non-alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron, Ductile iron, Malleable cast iron, White cast iron, Stainless steels (various types), Titanium and alloys, Spring steels, Magnesium alloys, Copper, Bronze, Brass, Thermoset and thermoplastic plastics
- Dimensions (H x L x W): 65mm x 65mm x 3.3mm
- Weight: 0.1 kg
Key Features
- Fast drilling with optimal chip removal due to reduced shank diameter from 13.0 mm to 12.7 mm
- Ideal for core holes with enhanced service life compared to uncoated HSS drill bits
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
- Self-centring design for precise drilling
- Oxide finish surface for durability
- 130 degree tip angle for efficient cutting
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling machines and cordless screwdrivers by trained operators.
Applications
- Machining stainless steel (V2A, V4A), heat-resistant steels, and titanium
- General applications in steel up to 1200 N/mm² tensile strength
- Drilling in cast iron and various metals including copper, bronze, brass, and plastics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic, fully recyclable to reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
The Wurth 3.3mm HSCo Oxide Finish Drill Bit is available for immediate purchase, ideal for machining stainless steel, titanium, and other metals in industrial and workshop settings.
