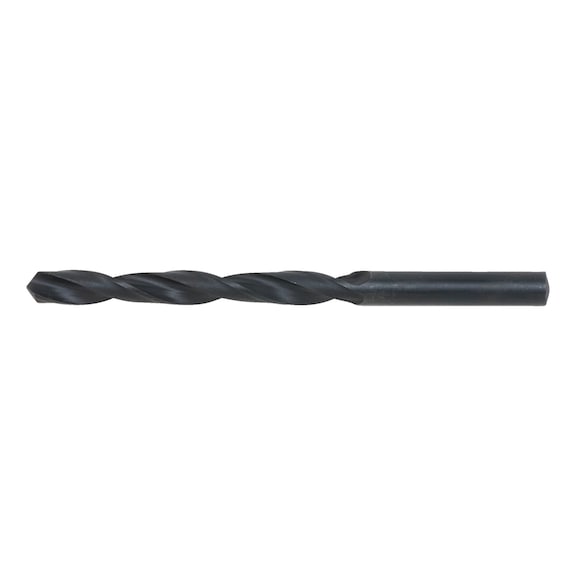

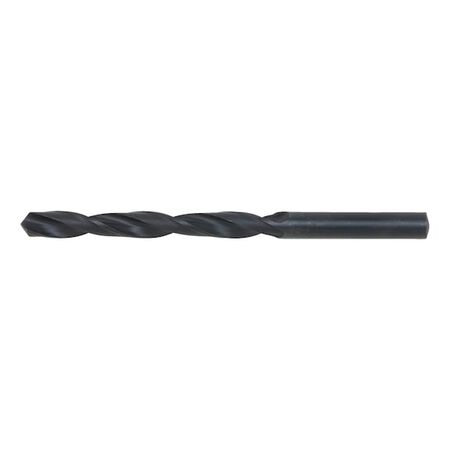

HSS Assembly Drill Bit 10.4mm | High Breakage Resistance | Vaporised Surface | by Wurth
The HSS Assembly Drill Bit 10.4mm is designed for efficient drilling in steel, featuring high breakage resistance and excellent adhesive properties for cooling lubricants. Ideal for construction and assembly applications, this drill bit ensures reduced material buildup and is suitable for use with standard drills and cordless screwdrivers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HSS Assembly Drill Bit 10.4mm | High Breakage Resistance | Vaporised Surface | by Wurth
Brand: Wurth
SKU: 625104
Alternatively Known As: Assembly drill bit, Steel drill bit, HSS drill bit, RN type drill bit, Wurth drill bit 10.4mm
Technical Specifications
- Suitable for machine type: Drill, Cordless screwdrivers
- Material to be processed: Steel
- Quality: Wurth-Standard
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 10.4 mm
- Length: 133 mm
- Chip flute length: 87 mm
- Shank diameter: 10.4 mm
- Shank style: Cylindrical
- Surface: Vaporised
- Cutting material: HSS
- Type: RN
- Angle of the tip: 118 Degree
- Service life rating: 2 of 4 points
- Drilling speed rating: 1 of 4 points
- Bore hole quality rating: 1 of 4 points
- Versatility rating: 1 of 4 points
- Drilling behaviour rating: 2 of 4 points
- Suitable for drill rating: 2 of 4 points
- Suitable for cordless drills rating: 2 of 4 points
- Suitable for upright drilling machine rating: 1 of 4 points
- Suitable for milling-drilling centre rating: 1 of 4 points
- Self-centring: No
- Suitable for tensile strength up to: 1000 N/mm²
- Material of sub-group: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 10mm x 133mm x 10mm
- Weight: 0.15 kg
Key Features
- High breakage resistance
- Excellent adhesive properties of cooling lubricants
- Reduced buildup of material deposits
- Sustainable product packaging made from 100% PCR recycled plastic and fully recyclable
Professional Installation Requirements
- No professional installation required. Suitable for use with standard drills and cordless screwdrivers by trained personnel.
Applications
- Construction site drilling
- Assembly applications in steel
- General machining of structural and non-alloyed tempering steels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Sustainable packaging made from 100% recycled plastic and fully recyclable materials
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth 625104 Assembly Drill Bit is available for immediate purchase, ideal for construction and general steel drilling applications.
