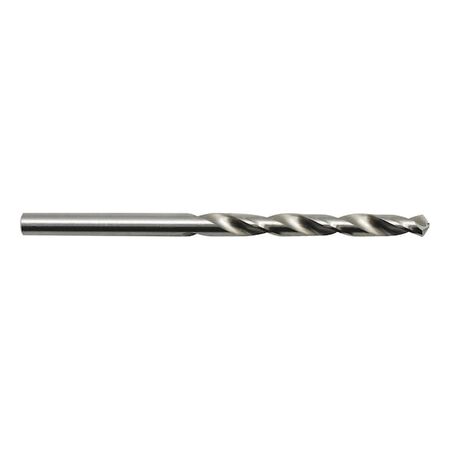

HSS Assembly Drill Bit 2.5mm | Self-Centering Design | Optimized Point Grinding | by Wurth
The HSS Assembly Drill Bit 2.5mm is designed for efficient drilling in steel and cast iron, featuring a self-centering design for precise results. With web thinning to reduce friction and optimized point grinding for quick drilling, this bit is perfect for assembly and construction applications. Ideal for trained personnel using standard drills, it ensures durability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HSS Assembly Drill Bit 2.5mm | Self-Centering Design | Optimized Point Grinding | by Wurth
Brand: Wurth
SKU: 617000250
Alternatively Known As: Assembly drill bit, HSS drill bit, Steel drill bit, Cast iron drill bit, Self-centering drill
Technical Specifications
- Material to be processed: Steel
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 2.50 mm
- Length (l1): 57 mm
- Chip flute length (l2): 30 mm
- Shank style: Cylindrical
- Surface: Plain
- Cutting material: HSS
- Service life (points system): 3 of 4 points
- Drilling speed (points system): 2 of 4 points
- Bore hole quality (points system): 2 of 4 points
- Versatility (points system): 2 of 4 points
- Drilling behaviour (points system): 2 of 4 points
- Suitable for drill (points system): 2 of 4 points
- Suitable for cordless drills (points system): 2 of 4 points
- Suitable for upright drilling machine (points system): 1 of 4 points
- Self-centring: Yes
- Dimensions (H x L x W): 2.5mm x 57mm x 2.5mm
- Weight: 0.1 kg
Key Features
- Web thinning reduces friction and feed force during drilling
- Optimized point grinding with short working length for quick drilling
- Self-centering design for precise drilling
- Suitable for use with cordless and wired drills
Professional Installation Requirements
- No professional installation required. Suitable for use with standard drills by trained personnel.
Applications
- General drilling in steel up to 850 N/mm² strength
- Drilling in cast iron
- Assembly and construction site drilling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable HSS material extends tool life reducing waste
- Efficient drilling reduces energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Assembly Drill 2.5mm is available now for immediate purchase. Ideal for machining and construction applications involving steel and cast iron.
