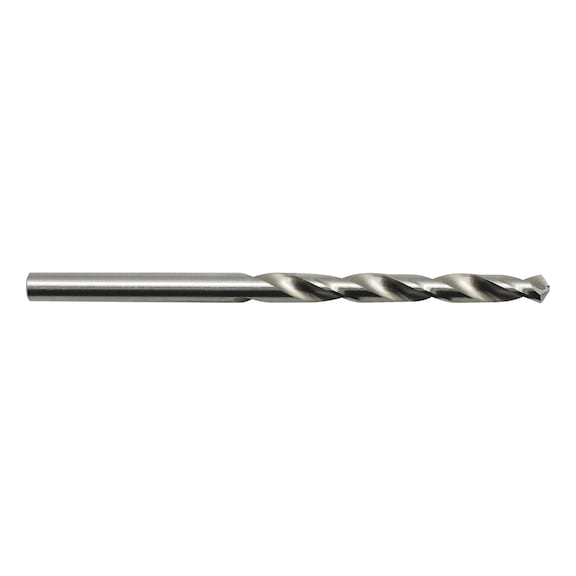

HSS Assembly Drill Bit 3.00mm | Self-Centering Design | Optimized Point Grinding | by Wurth
The HSS Assembly Drill Bit 3.00mm is designed for precision drilling in steel and cast iron, featuring a self-centering design and optimized point grinding for quick drilling. Ideal for construction and assembly work, this drill bit ensures efficient performance with reduced friction and feed force, making it perfect for both cordless and wired drills.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HSS Assembly Drill Bit 3.00mm | Self-Centering Design | Optimized Point Grinding | by Wurth
Brand: Wurth
SKU: 617000300
Alternatively Known As: Assembly drill bit, HSS drill bit, Steel drill bit, Cast iron drill bit
Technical Specifications
- Material to be processed: Steel
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 3.00 mm
- Length (l1): 61 mm
- Chip flute length (l2): 33 mm
- Shank style: Cylindrical
- Surface: Plain
- Cutting material: HSS
- Service life: 3 of 4 points
- Drilling speed: 2 of 4 points
- Bore hole quality: 2 of 4 points
- Versatility: 2 of 4 points
- Drilling behaviour: 2 of 4 points
- Suitable for drill: 2 of 4 points
- Suitable for cordless drills: 2 of 4 points
- Suitable for upright drilling machine: 1 of 4 points
- Self-centring: Yes
- Dimensions (H x L x W): 3mm x 61mm x 3mm
- Weight: 0.1 kg
Key Features
- Web thinning reduces friction and feed force during drilling
- Optimized point grinding with short working length for quick drilling
- Self-centering design for precise drilling
- Compatible with cordless and wired drills
Professional Installation Requirements
- No professional installation required; suitable for use with standard drills by trained personnel.
Applications
- General drilling in steel up to 850 N/mm² strength
- Drilling in cast iron
- Suitable for construction site and assembly work
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSS material extends tool life reducing waste
- Efficient drilling reduces energy consumption
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Assembly Drill 3.00mm is available now for immediate purchase. Ideal for machining and construction applications requiring precision drilling in steel and cast iron.
