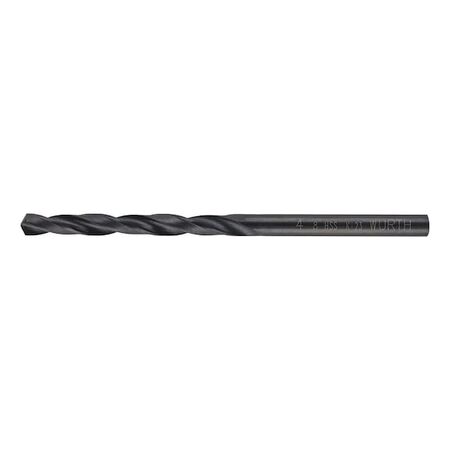

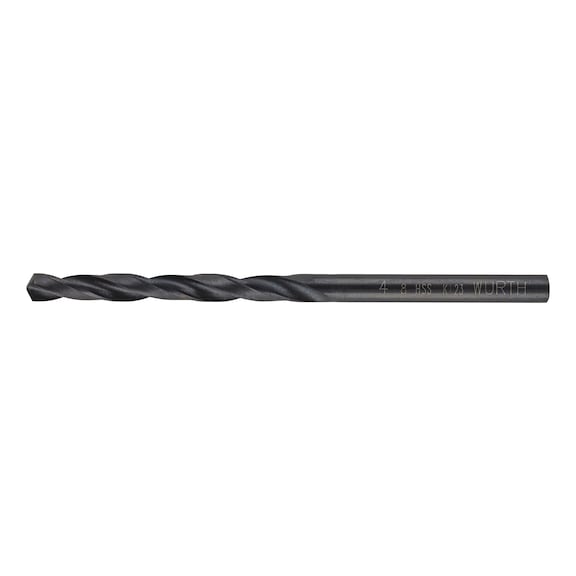

HSS Assembly Drill Bit 4.8mm | High Breakage Resistance | Ideal for Construction | by Wurth
The HSS Assembly Drill Bit 4.8mm is designed for efficient drilling in steel, making it perfect for construction site and assembly applications. With high breakage resistance and excellent adhesive properties for cooling lubricants, this drill bit ensures reliable performance without the need for high precision. Ideal for general machining of structural and non-alloyed tempering steels, it’s a must-have for any toolkit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for machine type: Drill, Cordless screwdrivers
- Material to be processed: Steel
- Quality: Wurth-Standard
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 4.8 mm
- Length: 86 mm
- Chip flute length: 52 mm
- Shank diameter: 4.8 mm
- Shank style: Cylindrical
- Surface: Vaporised
- Cutting material: HSS
- Type: RN
- Angle of the tip: 118 Degree
- Service life rating: 2 of 4 points
- Drilling speed rating: 1 of 4 points
- Bore hole quality rating: 1 of 4 points
- Versatility rating: 1 of 4 points
- Drilling behaviour rating: 2 of 4 points
- Suitable for drill rating: 2 of 4 points
- Suitable for cordless drills rating: 2 of 4 points
- Suitable for upright drilling machine rating: 1 of 4 points
- Suitable for milling-drilling centre rating: 1 of 4 points
- Self-centring: No
- Suitable for tensile strength up to: 1000 N/mm²
- Material of sub-group: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 4.8mm x 86mm x 4.8mm
- Weight: 0.1 kg
Key Features
- High breakage resistance
- Ideal for construction site and assembly applications without high precision requirements
- Excellent adhesive properties of cooling lubricants and reduced buildup of material deposits
- Sustainable product packaging made from 100% PCR recycled plastic and fully recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drills and cordless screwdrivers.
Applications
- Construction site drilling
- Assembly applications in steel
- General machining of structural and non-alloyed tempering steels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Sustainable packaging made from 100% post-consumer recycled plastic
- Fully recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth 62548 Assembly Drill Bit is available for immediate purchase, ideal for construction and general steel drilling applications.
