Trade Discount 20%

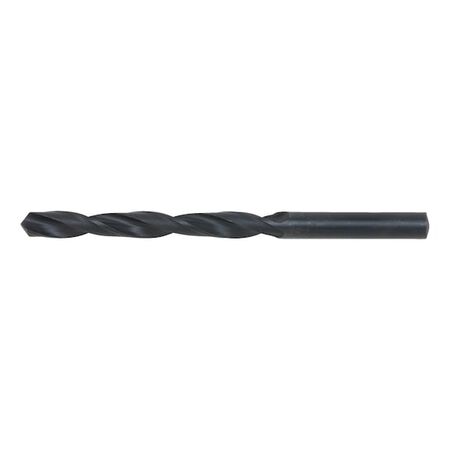

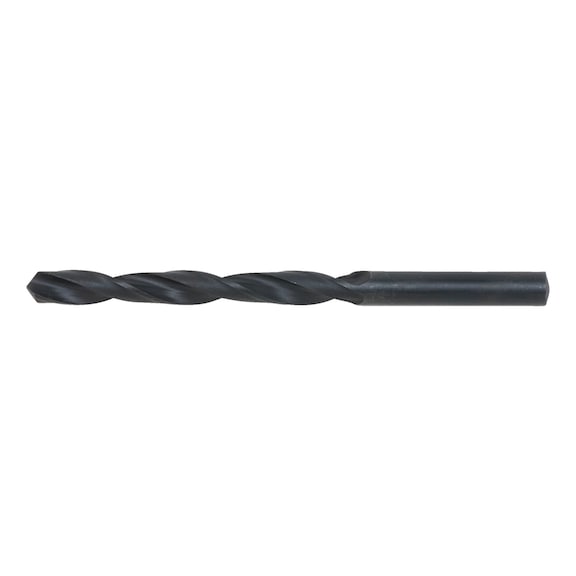

HSS Assembly Drill Bit 6.3mm | High Breakage Resistance | Ideal for Construction | by Wurth
The HSS Assembly Drill Bit 6.3mm is designed for efficient drilling in steel, making it perfect for construction site and assembly applications. With high breakage resistance and excellent adhesive properties for cooling lubricants, this drill bit ensures reliable performance without high precision requirements. Ideal for use with standard drills and cordless screwdrivers, it’s a must-have for any toolkit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HSS Assembly Drill Bit 6.3mm | High Breakage Resistance | Ideal for Construction | by Wurth
Brand: Wurth
SKU: 62563
Alternatively Known As: Assembly drill bit, Steel drill bit, HSS drill bit, Cordless drill bit, Wurth drill bit 6.3mm
Technical Specifications
- Suitable for machine type: Drill, Cordless screwdrivers
- Material to be processed: Steel
- Quality: Wurth-Standard
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 6.3 mm
- Length: 101 mm
- Chip flute length: 63 mm
- Shank diameter: 6.3 mm
- Shank style: Cylindrical
- Surface: Vaporised
- Cutting material: HSS
- Type: RN
- Angle of the tip: 118 Degree
- Service life (points system): 2 of 4 points
- Drilling speed (points system): 1 of 4 points
- Bore hole quality (points system): 1 of 4 points
- Versatility (points system): 1 of 4 points
- Drilling behaviour (points system): 2 of 4 points
- Suitable for drill (points system): 2 of 4 points
- Suitable for cordless drills (points system): 2 of 4 points
- Suitable for upright drilling machine (points system): 1 of 4 points
- Suitable for milling-drilling centre (points system): 1 of 4 points
- Self-centring: No
- Suitable for tensile strength up to: 1000 N/mm²
- Material of sub-group: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 6.3mm x 101mm x 6.3mm
- Weight: 0.1 kg
Key Features
- High breakage resistance
- Ideal for construction site and assembly applications without high precision requirements
- Excellent adhesive properties of cooling lubricants and reduced buildup of material deposits
- Sustainable product packaging made from 100% PCR recycled plastic and fully recyclable
Professional Installation Requirements
- No professional installation required. Suitable for use with standard drills and cordless screwdrivers by trained personnel.
Applications
- Construction site drilling
- Assembly applications in steel
- Use with drills and cordless screwdrivers
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Sustainable packaging made from 100% post-consumer recycled plastic
- Fully recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth 62563 assembly drill bit is available for immediate purchase, ideal for construction and general steel drilling applications.
