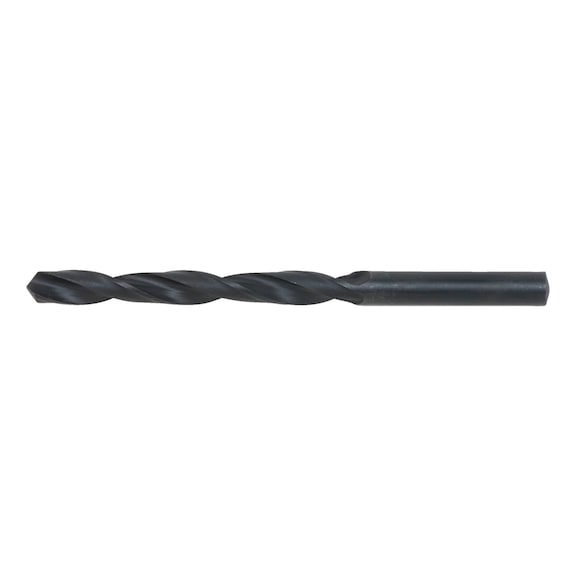

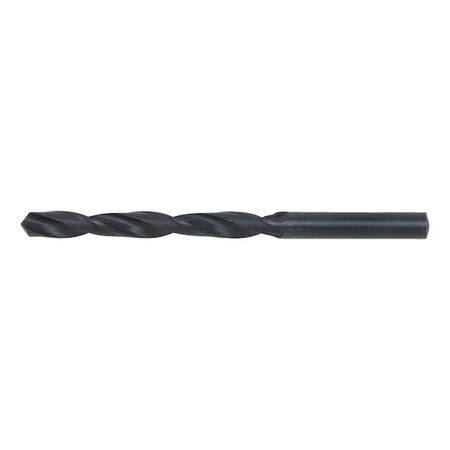

HSS Assembly Drill Bit for Steel | 12.4mm Diameter | High Breakage Resistance | Sustainable Packaging | by Wurth
The HSS Assembly Drill Bit for Steel is designed for construction site drilling and assembly applications, featuring a 12.4mm diameter and high breakage resistance. Ideal for machining general structural steels and non-alloyed tempering steels, this drill bit offers excellent adhesive properties with cooling lubricants, ensuring reduced material buildup. Perfect for use with standard drills and cordless screwdrivers, it combines performance with sustainable packaging made from 100% recycled plastic.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HSS Assembly Drill Bit for Steel | 12.4mm Diameter | High Breakage Resistance | Sustainable Packaging | by Wurth
Brand: Wurth
SKU: 625124
Alternatively Known As: Assembly drill bit for steel, HSS drill bit, Wurth steel drill bit, 12.4mm drill bit
Technical Specifications
- Suitable for machine type: Drill, Cordless screwdrivers
- Material to be processed: Steel
- Quality: Wurth-Standard
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 12.4 mm
- Length: 151 mm
- Chip flute length: 101 mm
- Shank diameter: 12.4 mm
- Shank style: Cylindrical
- Surface: Vaporised
- Cutting material: HSS
- Type: RN
- Angle of the tip: 118 Degree
- Service life (points system): 2 of 4 points
- Drilling speed (points system): 1 of 4 points
- Bore hole quality (points system): 1 of 4 points
- Versatility (points system): 1 of 4 points
- Drilling behaviour (points system): 2 of 4 points
- Suitable for drill (points system): 2 of 4 points
- Suitable for cordless drills (points system): 2 of 4 points
- Suitable for upright drilling machine (points system): 1 of 4 points
- Suitable for milling-drilling centre (points system): 1 of 4 points
- Self-centring: No
- Suitable for tensile strength up to: 1000 N/mm²
- Material of sub-group: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 151mm x 151mm x 12mm
- Weight: 0.2 kg
Key Features
- High breakage resistance
- Ideal for construction site and assembly applications without high precision requirements
- Excellent adhesive properties of cooling lubricants and reduced buildup of material deposits
- Sustainable product packaging made from 100% PCR recycled plastic and fully recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drills and cordless screwdrivers.
Applications
- Construction site drilling and assembly applications
- Machining general structural steels and non-alloyed tempering steels
- Use with drills and cordless screwdrivers
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Sustainable packaging made from 100% recycled plastic from household waste
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth 625124 assembly drill bit is available now for immediate purchase. Ideal for construction and machining applications involving steel materials.
