HSS Combination Screw Tap | 3-in-1 Operation | Up to 100% Faster | by Wurth
The HSS Combination Screw Tap is designed for high-precision drilling, thread cutting, and countersinking in one operation. Ideal for professionals, it works seamlessly with steel, cast metal, and non-ferrous materials. With SMART STEP technology, this tap offers optimal centering on curved surfaces and is up to 100% faster than traditional taps, ensuring efficiency and quality in every project.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

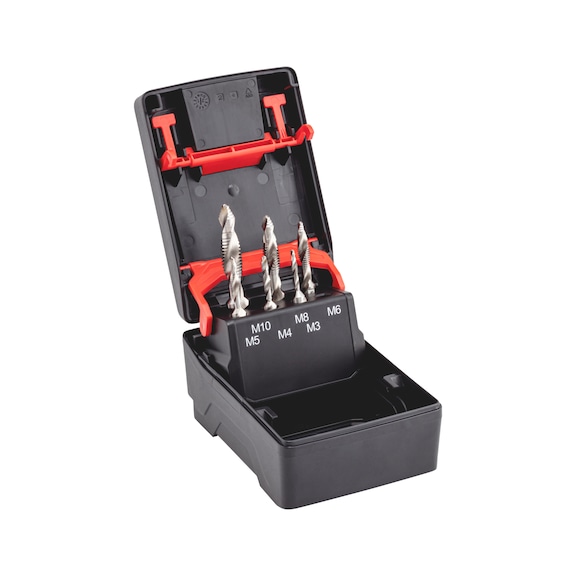

Product Name/Title: HSS Combination Screw Tap | 3-in-1 Operation | Up to 100% Faster | by Wurth
Brand: Wurth
SKU: 653930007
Alternatively Known As: HSS Combination Screw Tap, SMART STEP Screw Tap, Thread Cutting Tap, 3-in-1 Screw Tap
Technical Specifications
- Number of pieces in set: 6 PCS
- Material to be processed: Steel, Cast metal, Non-ferrous metal
- Quality: ZEBRA-Premium
- Hole type: Clearance hole 1xD
- Cutting material: HSS
- Surface: Plain
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Suitable for tensile strength up to: 600 N/mm²
- Thread type: Metric thread
- Service life rating: 2 of 4 points
- Trueness to gauge rating: 4 of 4 points
- Versatility rating: 2 of 4 points
- Cutting behaviour rating: 4 of 4 points
- Chip formation rating: 4 of 4 points
- Material sub-groups: General structural steels, Non-alloyed tempering steels, Alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron, Ductile iron, Malleable cast iron, Aluminium and alloys, Copper, Brass, Bronze, Thermoset and thermoplastic plastics
- Dimensions (H x L x W): 50mm x 200mm x 150mm
- Weight: 0.2 kg
Key Features
- 3 in 1 operation: drilling, thread cutting, and countersinking/deburring
- Up to 100% faster than traditional HSS combi screw taps
- Optimal centring on curved surfaces
- Highly precise circular holes for quality thread cutting
- Low-effort drilling
- First combi screw tap with stepped drill bit tip geometry
- Through hole threads true to gauge size according to ISO 2 (6H)
- 1/4" hex shank for versatile use
- Compact and practical system cassette compatible with ORSY system
Professional Installation Requirements
- Use by trained professionals or machinists recommended to ensure proper handling and safety during operation.
Applications
- High-precision drilling, thread cutting, and countersinking/deburring in one operation
- Suitable for steel, cast metal, non-ferrous metal
- Use with cordless drills, hand-held, pillar, and upright drilling machines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces tool changes and waste by combining multiple operations into one
- Improves efficiency, reducing energy consumption during machining
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Short HSS Combination Screw Tap with SMART STEP technology is available for immediate purchase, ideal for precision machining and threading applications.
