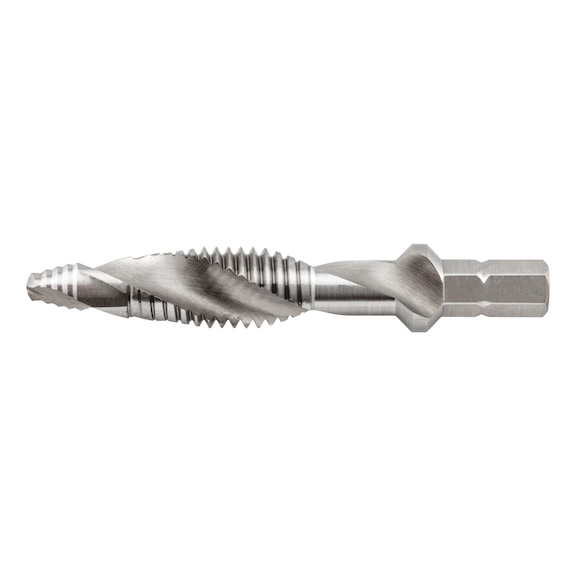

HSS Combination Screw Tap M10 | 3-in-1 Functionality | SMART STEP Technology | by Wurth
The HSS Combination Screw Tap M10 is designed for efficient drilling, thread cutting, and countersinking in one step. With SMART STEP technology, it offers up to 100% faster work compared to conventional taps, making it ideal for professionals in metalworking and machining. This versatile tool is suitable for non-ferrous metals, steel, and various alloys, ensuring high-quality results with optimal centering even on curved surfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HSS Combination Screw Tap M10 | 3-in-1 Functionality | SMART STEP Technology | by Wurth
Brand: Wurth
SKU: 653931000
Alternatively Known As: HSS Combination Screw Tap, SMART STEP Screw Tap, Thread Cutter Tap M10, Multi-function Screw Tap
Technical Specifications
- Thread type x nominal diameter: M10
- Thread type: Metric thread
- Material to be processed: Non-ferrous metal, Steel, Cast metal
- Hole type: Clearance hole approx. 1xD
- Quality: ZEBRA-Premium
- Suitable for machine type: Drill, Cordless screwdrivers, Pedestal drilling machine
- Pitch: 1.5 mm
- Length: 64 mm
- Shank diameter: 7.18 mm
- Cutting material: HSS
- Surface: Plain
- Tolerance of screw taps: ISO 2 (6H)
- Service life (points system): 2 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 4 of 4 points
- Suitable for tensile strength up to: 600 N/mm²
- Material of sub-group: General structural steels, Non-alloyed tempering steels, Alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron, Ductile iron, Malleable cast iron, Aluminium and alloys, Copper, Brass, Bronze, Thermoset and thermoplastic plastics
- Dimensions (H x L x W): 64mm x 64mm x 7mm
- Weight: 0.1 kg
Key Features
- 3 in 1 functionality: drilling, thread cutting, and countersinking/deburring in one step
- SMART STEP technology enables up to 100% faster work compared to conventional HSS combination screw taps
- Optimal centring even on curved surfaces
- High-precision, perfectly circular holes for high-quality thread cutting
- True-to-the-gauge through hole thread according to ISO 2 (6H)
- 1/4 inch hexagon mount for versatile machine compatibility
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
- Available exclusively from Wurth
Professional Installation Requirements
- Use by trained professionals or machinists recommended to ensure proper handling and safety during operation.
Applications
- Drilling, thread cutting, and countersinking/deburring in a single operation
- Suitable for use in cordless drill drivers, handheld drills, drill presses, and pillar drills
- Ideal for machining non-ferrous metals, steel, cast metal, and various alloys
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Short HSS Combination Screw Tap with SMART STEP technology is available for immediate purchase, ideal for machining and metalworking applications requiring efficient thread cutting.
