HSS Combination Screw Tap M12 | SMART STEP Technology | 3-in-1 Operation | by Wurth

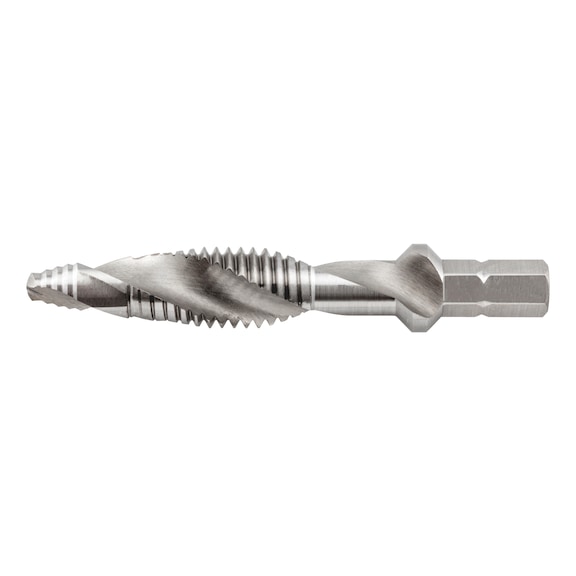

The HSS Combination Screw Tap M12 is designed for drilling, thread cutting, and countersinking in a single operation. Featuring SMART STEP technology, it ensures high precision and optimal centering on curved surfaces, making it ideal for machining non-ferrous metals, steel, and various alloys. Perfect for professionals, this tap guarantees true-to-gauge threads according to ISO 2 standards, enhancing your metalworking efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HSS Combination Screw Tap M12 | SMART STEP Technology | 3-in-1 Operation | by Wurth
Brand: Wurth
SKU: 653931200
Alternatively Known As: Combination Screw Tap, HSS Thread Cutter, SMART STEP Screw Tap, Metric Thread Tap M12
Technical Specifications
- Thread type x nominal diameter: M12
- Thread type: Metric thread
- Material to be processed: Non-ferrous metal, Steel, Cast metal
- Hole type: Clearance hole approx. 1xD
- Quality: ZEBRA-Premium
- Suitable for machine type: Drill, Cordless screwdrivers, Pedestal drilling machine
- Pitch: 1.75 mm
- Length: 72 mm
- Shank diameter: 7.18 mm
- Cutting material: HSS
- Surface: Plain
- Tolerance of screw taps: ISO 2 (6H)
- Service life (points system): 2 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 4 of 4 points
- Suitable for tensile strength up to: 600 N/mm²
- Material of sub-group: General structural steels, Non-alloyed tempering steels, Alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron, Ductile iron, Malleable cast iron, Aluminium and alloys, Copper, Brass, Bronze, Thermoset and thermoplastic plastics
- Dimensions (H x L x W): 7mm x 72mm x 7mm
- Weight: 0.1 kg
Key Features
- 3 in 1 operation: drilling, thread cutting, and countersinking/deburring
- SMART STEP technology for highly precise drilling and thread cutting
- Optimal centring on curved surfaces
- High-precision, perfectly circular holes for quality thread cutting
- True-to-the-gauge through hole thread according to ISO 2 (6H)
- 1/4 inch hexagon mount for versatile machine compatibility
- Product packaging made from 100% PCR recycled plastic and fully recyclable
- Available exclusively from Wurth
Professional Installation Requirements
- Use by trained professionals or skilled operators is recommended to ensure precision and safety during machining operations.
Applications
- Drilling, thread cutting, and countersinking/deburring in a single operation
- Suitable for use in cordless drill drivers, handheld drills, drill presses, and pillar drills
- Ideal for machining non-ferrous metals, steel, cast metal, and various alloys
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable, reducing environmental impact
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth Short HSS Combination Screw Tap with SMART STEP technology is available for immediate purchase, ideal for machining and threading applications in metalworking industries.
