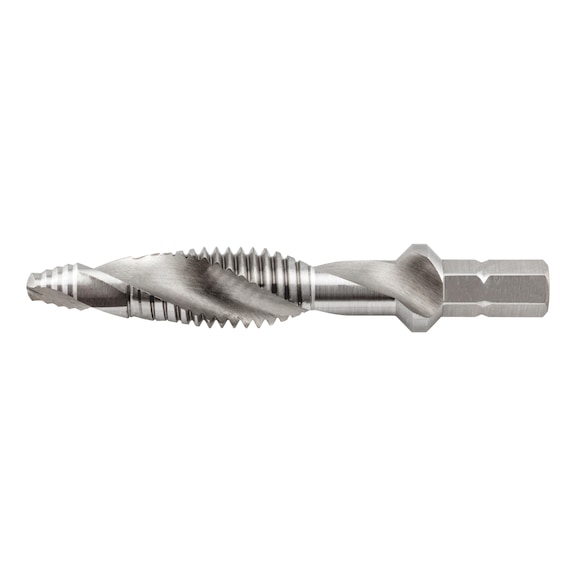

HSS Combination Screw Tap M3 | 3-in-1 Functionality | SMART STEP Technology | by Wurth
The HSS Combination Screw Tap M3 is designed for precision drilling, thread cutting, and countersinking in one step. Ideal for professionals, it features SMART STEP technology for optimal centering on curved surfaces and high-precision holes. Perfect for machining non-ferrous metals, steel, and various alloys, this tool ensures quality results with every use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HSS Combination Screw Tap M3 | 3-in-1 Functionality | SMART STEP Technology | by Wurth
Brand: Wurth
SKU: 653930300
Alternatively Known As: HSS Combination Screw Tap, SMART STEP Screw Tap, Thread Cutter M3, Multi-function Screw Tap
Technical Specifications
- Thread type x nominal diameter: M3
- Thread type: Metric thread
- Material to be processed: Non-ferrous metal, Steel, Cast metal
- Hole type: Clearance hole approx. 1xD
- Quality: ZEBRA-Premium
- Suitable for machine type: Drill, Cordless screwdrivers, Pedestal drilling machine
- Pitch: 0.5 mm
- Length: 37 mm
- Shank diameter: 7.18 mm
- Cutting material: HSS
- Surface: Plain
- Tolerance of screw taps: ISO 2 (6H)
- Service life (points system): 2 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 4 of 4 points
- Suitable for tensile strength up to: 600 N/mm²
- Material of sub-group: General structural steels, Non-alloyed tempering steels, Alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron, Ductile iron, Malleable cast iron, Aluminium and alloys, Copper, Brass, Bronze, Thermoset and thermoplastic plastics
- Dimensions (H x L x W): 37mm x 37mm x 7mm
- Weight: 0.1 kg
Key Features
- 3 in 1 functionality: drilling, thread cutting, and countersinking/deburring in one step
- SMART STEP technology enables highly precise drilling and thread cutting
- Optimal centring even on curved surfaces
- High-precision, perfectly circular holes for quality thread cutting
- True-to-the-gauge through hole thread according to ISO 2 (6H)
- 1/4 inch hexagon mount for versatile machine compatibility
- Product packaging made from 100% PCR recycled plastic and is fully recyclable
- Available exclusively from Wurth
Professional Installation Requirements
- Use by trained professionals or under supervision; suitable for use with standard drilling and screw driving machines.
Applications
- Drilling, thread cutting, and countersinking/deburring in a single operation
- Suitable for use in cordless drill drivers, handheld drills, drill presses, and pillar drills
- Ideal for machining non-ferrous metals, steel, cast metal, and various alloys
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- Fully recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
The Wurth Short HSS Combination Screw Tap with SMART STEP technology is available for immediate purchase, ideal for precision machining and threading applications.
