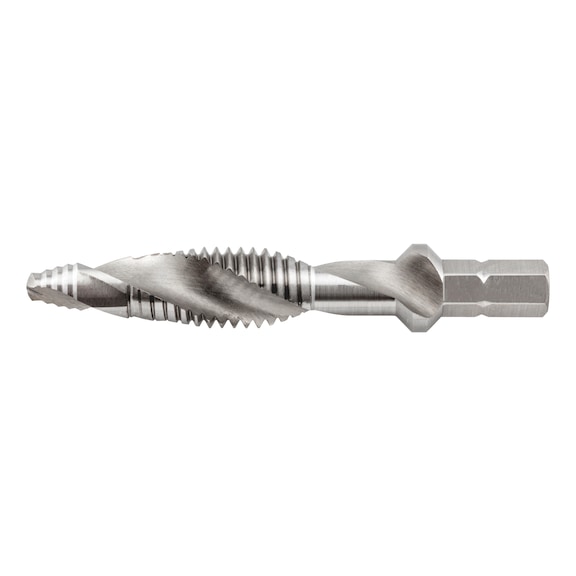

HSS Combination Screw Tap M6 | 3-in-1 Drilling & Thread Cutting | High Precision | by Wurth
The HSS Combination Screw Tap M6 is designed for efficient drilling, thread cutting, and countersinking in a single operation. Ideal for professionals working with non-ferrous metals, steel, and plastics, this innovative tool features SMART STEP technology for optimal centering and high-quality thread cutting. Experience up to 100% faster work compared to conventional taps, making it perfect for various machining applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HSS Combination Screw Tap M6 | 3-in-1 Drilling & Thread Cutting | High Precision | by Wurth
Brand: Wurth
SKU: 653930600
Alternatively Known As: Combination screw tap, HSS screw tap, SMART STEP screw tap, Thread cutting tap, Drill and tap tool
Technical Specifications
- Thread type x nominal diameter: M6
- Thread type: Metric thread
- Material to be processed: Non-ferrous metal, Steel, Cast metal
- Hole type: Clearance hole approx. 1xD
- Quality: ZEBRA-Premium
- Suitable for machine type: Drill, Cordless screwdrivers, Pedestal drilling machine
- Pitch: 1.0 mm
- Length: 46 mm
- Shank diameter: 7.18 mm
- Cutting material: HSS
- Surface: Plain
- Tolerance of screw taps: ISO 2 (6H)
- Service life (points system): 2 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 4 of 4 points
- Suitable for tensile strength up to: 600 N/mm²
- Material of sub-group: General structural steels, Non-alloyed tempering steels, Alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron, Ductile iron, Malleable cast iron, Aluminium and alloys, Copper, Brass, Bronze, Plastics
- Dimensions (H x L x W): 7mm x 46mm x 7mm
- Weight: 0.1 kg
Key Features
- 3 in 1 - drilling, thread cutting and countersinking/deburring in a single operation
- Work up to 100% faster than with conventional HSS combination screw taps
- Optimal centring even when working on curved surfaces
- High-precision, perfectly circular holes for high-quality thread cutting
- Effortless drilling
- First combination screw tap with stepped drill bit tip geometry
- True-to-the-gauge through hole thread according to ISO 2 (6H)
- 1/4 inch hexagon mount for easy tool change
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
- Available exclusively from Wurth
Professional Installation Requirements
- Use by trained professionals or under supervision is recommended to ensure correct operation and safety.
Applications
- Drilling, thread cutting, and countersinking/deburring in a single operation
- Suitable for use in cordless drill drivers, handheld drills, drill presses, and pillar drills
- Processing non-ferrous metal, steel, cast metal, plastics (thermoset and thermoplastic)
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Short HSS Combination Screw Tap with SMART STEP technology is available for immediate purchase. Ideal for machining applications requiring efficient and precise thread cutting.
