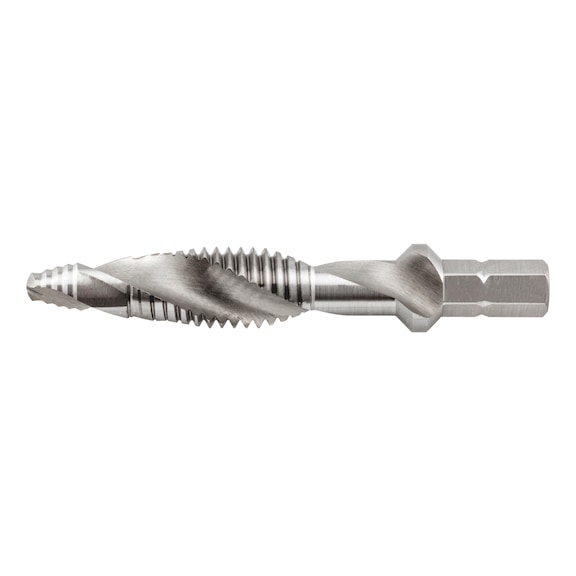

HSS Combination Screw Tap M8 | SMART STEP Technology | 3-in-1 Functionality | by Wurth
The HSS Combination Screw Tap M8 is designed for precision drilling, thread cutting, and countersinking in one operation. Featuring SMART STEP technology, it ensures optimal centering and high-quality thread cutting on various materials, including non-ferrous metals and steel. Ideal for professionals, this tap is perfect for use with cordless drills and drill presses, making it a versatile addition to any metalworking toolkit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HSS Combination Screw Tap M8 | SMART STEP Technology | 3-in-1 Functionality | by Wurth
Brand: Wurth
SKU: 653930800
Alternatively Known As: Combination Screw Tap, HSS Thread Cutter, SMART STEP Screw Tap, Metric Thread Tap M8
Technical Specifications
- Thread type x nominal diameter: M8
- Thread type: Metric thread
- Material to be processed: Non-ferrous metal, Steel, Cast metal
- Hole type: Clearance hole approx. 1xD
- Quality: ZEBRA-Premium
- Suitable for machine type: Drill, Cordless screwdrivers, Pedestal drilling machine
- Pitch: 1.25 mm
- Length: 54 mm
- Shank diameter: 7.18 mm
- Cutting material: HSS
- Surface: Plain
- Tolerance of screw taps: ISO 2 (6H)
- Service life (points system): 2 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 4 of 4 points
- Suitable for tensile strength up to: 600 N/mm²
- Material of sub-group: General structural steels, Non-alloyed tempering steels, Alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron, Ductile iron, Malleable cast iron, Aluminium and alloys, Copper, Brass, Bronze, Thermoset and thermoplastic plastics
- Dimensions (H x L x W): 7mm x 54mm x 7mm
- Weight: 0.1 kg
Key Features
- 3 in 1 functionality: drilling, thread cutting, and countersinking/deburring in one operation
- SMART STEP technology for highly precise drilling and thread cutting
- Optimal centring even on curved surfaces
- High-precision, perfectly circular holes for quality thread cutting
- True-to-the-gauge through hole thread according to ISO 2 (6H)
- 1/4 inch hexagon mount for versatile use
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
- Available exclusively from Wurth
Professional Installation Requirements
- Use by trained professionals or under supervision is recommended to ensure proper operation and safety.
Applications
- Suitable for drilling, thread cutting, and countersinking/deburring in a single operation
- Use in cordless drill drivers, handheld drills, drill presses, and pillar drills
- Ideal for machining non-ferrous metals, steel, cast metals, and various alloys
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Short HSS Combination Screw Tap with SMART STEP technology is available for immediate purchase. Ideal for precision machining and threading applications in metalworking.
