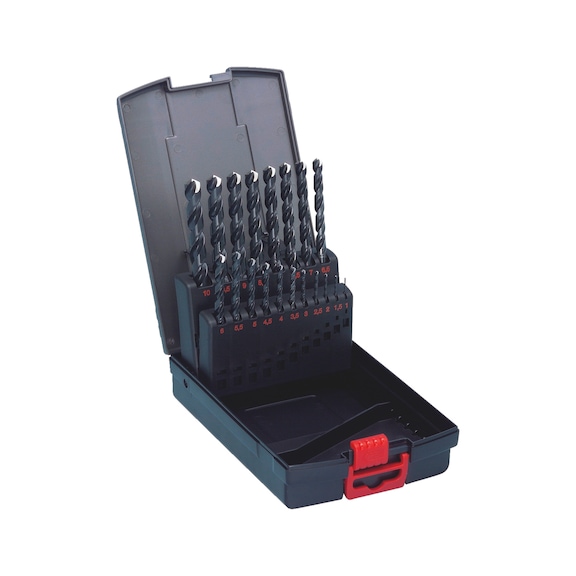

HSS Drill Bit RN | Precision Spot Drilling | Self-Centring Design | 19-Piece Set | by Wurth
The HSS Drill Bit RN is designed for precision spot drilling, featuring a self-centring design and 20% lower infeed force for quicker progress. Ideal for general drilling in steel and cast iron, this 19-piece set is perfect for both professionals and DIY enthusiasts, ensuring excellent adhesive properties of cooling lubricants and reduced material deposits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HSS Drill Bit RN | Precision Spot Drilling | Self-Centring Design | 19-Piece Set | by Wurth
Brand: Wurth
SKU: 624000001
Alternatively Known As: HSS Drill Bit, Steel Drill Bit, Precision Drill Bit, RN Drill Bit, High-Speed Steel Drill
Technical Specifications
- Material: High-Speed Steel (HSS)
- Type: RN
- Shank style: Cylindrical
- Surface: Vaporised
- Standard / drilling depth: DIN 338 / 5xD
- Included sizes: 1.0 to 10.0 mm with 0.5 mm graduation
- Number of pieces in set: 19
- Quality: ZEBRA-Premium
- Suitable for drill points system: 3 of 4
- Suitable for cordless drills points system: 3 of 4
- Suitable for upright drilling machine points system: 3 of 4
- Suitable for milling-drilling centre points system: 1 of 4
- Service life points system: 3 of 4
- Drilling speed points system: 3 of 4
- Bore hole quality points system: 4 of 4
- Versatility points system: 2 of 4
- Drilling behaviour points system: 3 of 4
- Self-centring: Yes
- Material suitability: General structural steels, non-alloyed tempering steels, cast iron, ductile iron, malleable cast iron, magnesium alloys, copper low-alloyed, brass long-chipping and short-chipping, thermoset and thermoplastic plastics
- Dimensions (H x L x W): 10mm x 75mm x 10mm
- Weight: 0.1 kg
Key Features
- 20% lower infeed force compared to conventional drill bits for quicker progress and gentler working
- Precise spot drilling without centring, even on curved surfaces
- Excellent adhesive properties of cooling lubricants reducing material deposits
- Self-centring design
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling equipment by trained personnel.
Applications
- General drilling in steel up to 1,000 N/mm²
- Drilling in cast iron
- Core drill holes
- Suitable for use with cordless drills, upright drilling machines, and milling-drilling centers
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduced energy consumption due to lower infeed force
- Longer tool life reduces waste and resource consumption
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Steel Precision Drill Bit RN HSS is available for immediate purchase, ideal for machining and metalworking applications.
