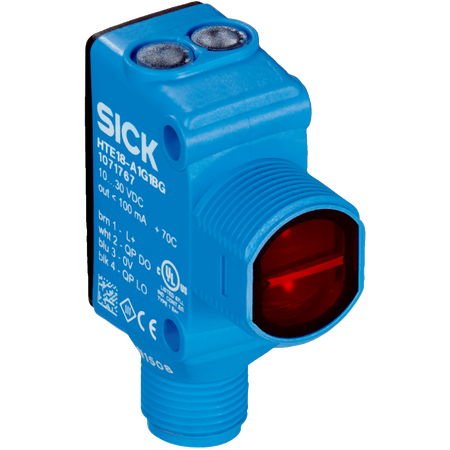

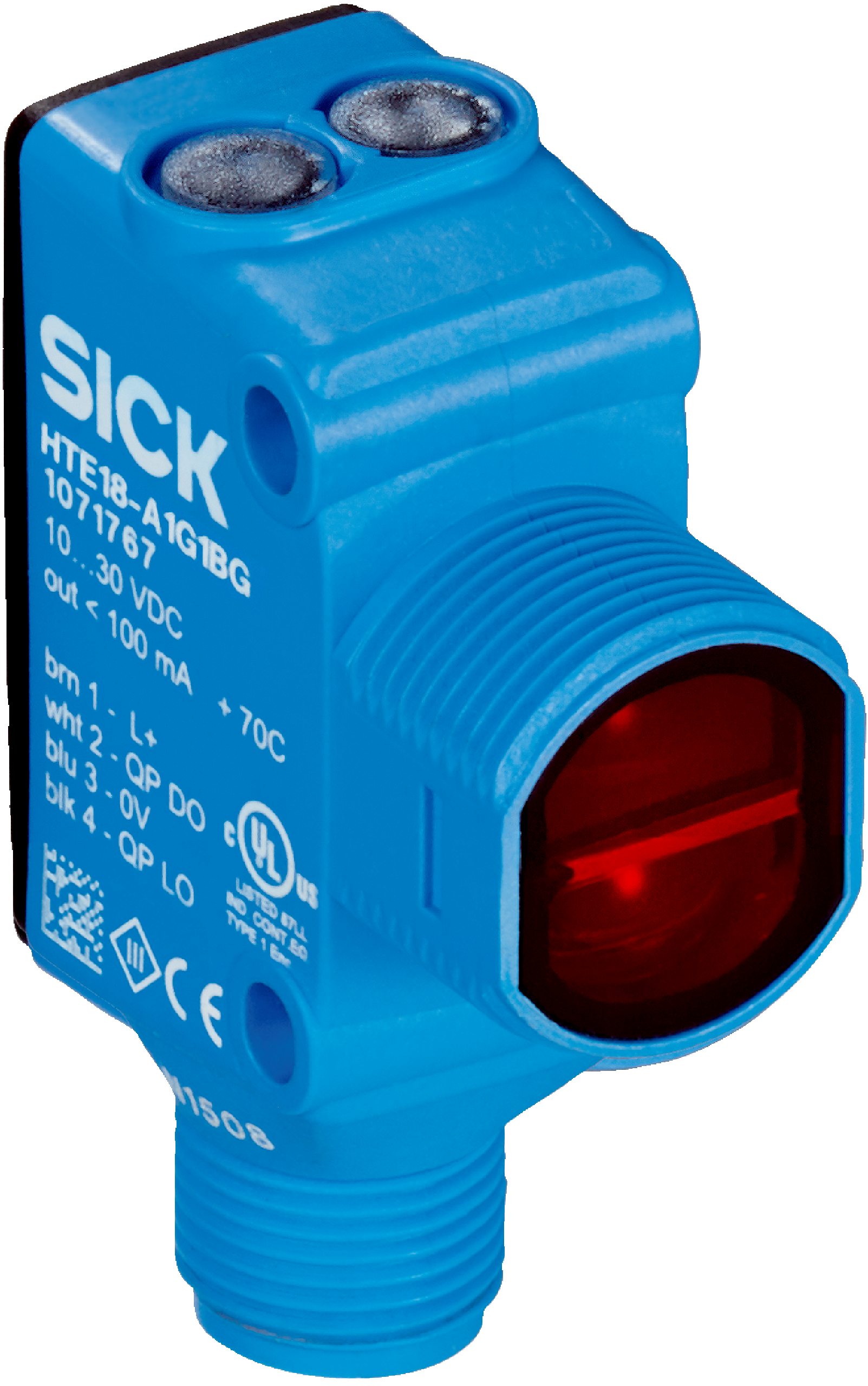

HTE18-F4A1BLA00 | Photoelectric sensors
The SICK HTE18-F4A1BLA00 is a high-performance photoelectric proximity sensor featuring energetic infrared detection, robust IP67/IP69K rated housing, and IO-Link communication for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HTE18-F4A1BLA00 | Photoelectric sensors
Brand: SICK
SKU: 1100048
Alternatively Known As: Photoelectric proximity sensor, Infrared proximity sensor, M18 photoelectric sensor, Industrial photo sensor, SICK proximity sensor
Technical Specifications
- Functional principle: Energetic photoelectric proximity sensor
- Sensing range: 10 mm to 250 mm (standard), up to 1000 mm max
- Light source: Infrared LED, 850 nm wavelength
- Switching output: Push-pull PNP/NPN complementary, light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67, IP69K
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +75 °C
- EMC: EN 60947-5-2 compliant
- IO-Link: Version 1.1, 38.4 kbit/s data rate, 2.3 ms cycle time
- Dimensions (H x L x W): 48.5mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Hybrid housing design with M18 thread diameter
- Sensing range from 10 mm to 250 mm, max up to 1000 mm
- Infrared LED light source with 850 nm wavelength
- Signal strength light bar for easy adjustment
- Push-pull PNP/NPN complementary switching outputs with light/dark switching
- Fast response time ≤ 0.5 ms and switching frequency up to 1000 Hz
- Male M12 4-pin connector for connection
- Robust plastic VISTAL® housing and PMMA optics
- High protection rating IP67 and IP69K for harsh environments
- Wide ambient operating temperature range from -40 °C to +70 °C
- EMC compliant with EN 60947-5-2 industrial radio safety standards
- Equipped with IO-Link V1.1 interface for digital communication
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Packaging machinery
- Robotics and safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67/IP69K rated housing minimizes environmental waste by extending product life
- Compliant with China RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HTE18-F4A1BLA00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
