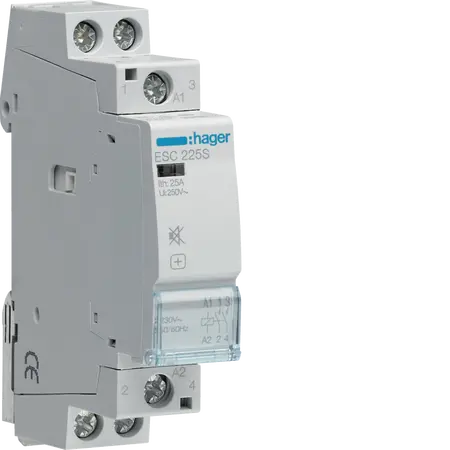

Humfree Contactor 25A | 2NO | 230V 50/60Hz | Noise Reduction by Hager

BRAND: :hager
SKU: ESC225S
$77.90 List price: $99.60
+ −
30 Days Return Delivery Options
Humfree contactor with 25A rating and 2NO contacts—ideal for domestic and commercial systems. Built for noise reduction, with compact design and high electrical endurance.

Product Name/Title: Humfree Contactor 25A, 2NO, 230V~50/60Hz

Brand: Hager

SKU: ESC225S

Alternatively Known As: Humfree 25A Contactor

Technical Specifications
  • Type of contacts: 2NO
  • Number of contacts: 2
  • Cross-section flexible conductor: 1 - 6 mm²
  • Cross-section rigid conductor: 1 - 10 mm²
  • Rated current: 25 A
  • Number of modules: 1
  • Frequency: 50 - 50 Hz
  • Rated impulse withstand voltage Uimp: 4000 V
  • Rated insulation voltage Ui: 250 V
  • Command voltage AC: 230 - 230 V
  • Command voltage DC: 0 - 0 V
  • Operating temperature: -10 - 50 °C
  • Storage/transport temperature: -40 - 80 °C
  • Number of mechanical operations: 100000
  • Electric endurance in number of cycles: 30000
  • Total power loss under IN: 5,20 W
  • Inrush power absorbed: 2,50 VA
  • Height: 83 mm
  • Width: 17,85 mm
  • Depth: 60 mm
  • Number of NO contacts: 2
  • Number of NC contacts: 0
  • With switch for manual switch: No
  • Nominal tightening torque: 1,20 - 1,20 Nm
  • Safety hint: Humfree contactors are not suitable for intensive use cases (powered 24/7) and in these cases industrial contactors must be used.
  • Dimensions (H x L x W): 83mm x 60mm x 17.85mm
  • Weight: 0.2 kg
Key Features
  • Humfree technology reduces noise.
  • Compact design suitable for domestic and commercial applications.
  • High electrical endurance.
Professional Installation Requirements
  • Recommended to have this installed by a qualified electrician to ensure safety and compliance.
Applications
  • Suitable for domestic and commercial electrical systems.
  • Ideal for applications where reduced noise is essential.
Standards & Compliance
  • Compliant with AS/NZS IEC 60947 standards.
Environmental Benefits
  • Reduced operational noise contributes to a quieter environment.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Humfree Contactor 25A, 2NO, 230V~50/60Hz is available for immediate purchase, ideal for reliable noise-reduced electrical connections.

ESC225S (ESC225S, 122 Kb) [Download]

reach_declaration_ESC225S6.pdf (reach_declaration_ESC225S6.pdf, 103 Kb) [Download]

rohs_declaration_ESC225S6.pdf (rohs_declaration_ESC225S6.pdf, 104 Kb) [Download]

(CONTACTORS.pdf, 197 Kb) [Download]

(DECLARATION_21_3000_09_21.pdf, 383 Kb) [Download]

(DECLARATION_21_1376_05_21.pdf, 221 Kb) [Download]
